Series European Type Jaw Crusher
6CX

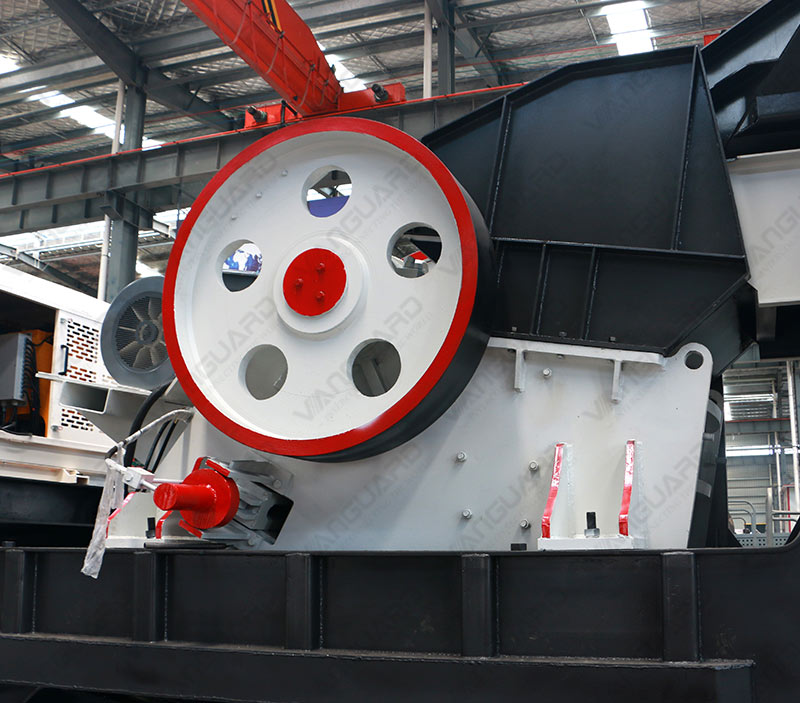

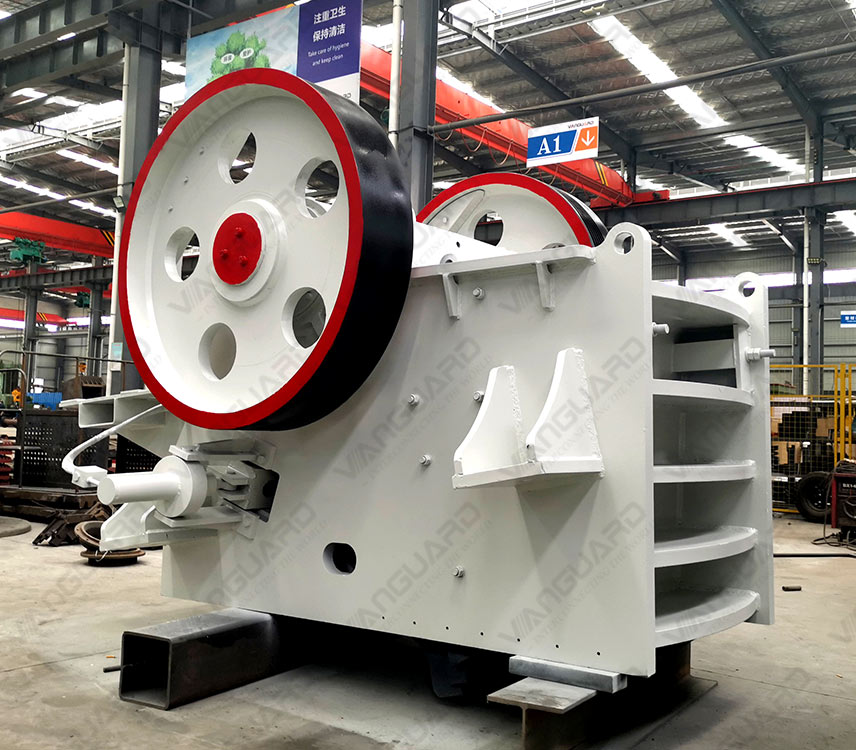

6CX series Jaw Crusher has adopted the world's most advanced crushing technology and research achievement. It is the new type of crushers with the world s advanced level which was successfully developed by using the finite element analysis method based on years of experience in jaw crusher design and manufacture.

WATCH VIDEO

TECHNICAL DATA

Model	6CX80	6CX96	6CX106	6CX110	6CX125	6CX140	6CX145	6CX160
The feeding mouth(mm)	800×510	930×580	1060×700	1100×850	1250×950	1400×1070	1400×1100	1600×1200
Motor power(kw)	75	75(90)	110	132(160)	160(132)	200(160)	200	250(200)
Speed(rpm)	350	300	280	230	220	220	220	220
Fixed Jaw lenght(mm)	1100	1380	1450	1800	2000	2100	2300	2500
Maintenance maximum weight(kg) (without the flywheel jaw assembly)	2870	4500	7800	9000	12960	15950	18600	21380
Total weight(kg) (Do not include motor and accessories)	7520	12000	19000	25060	36700	45300	53800	68600
Width of feeding port(mm)	800		1060	1100	1250	1400	1400	1600
Feed depth(mm)	510		700	850	950	1070	1100	1200
Tight edge discharge port(mm)	Ton/hourly	Ton/hourly	Ton/hourly	Ton/hourly	Ton/hourly	Ton/hourly	Ton/hourly	Ton/hourly
40	65-85
50	80-95
60	95-125	105-135
70	115-150	125-155	155-200	190-250
80	130-170	140-180	175-230	210-275
90	150-195	160-200	200-260	235-305
100	165-215	175-225	220-290	255-330	290-380
125	210-275	220-280	280-365	310-405	350-455	385-500	400-520
150	250-325	265-335	335-435	370-480	410-535	455-590	470-610	520-675
175	290-380	310-390	390-510	425-550	470-610	520-675	540-700	595-775
200			445-580	480-625	530-690	590-765	610-795	675-880
225					590-770	655-850	680-885	750-975
250					650-845	725-945	750-975	825-1070
275							820-1070	900-1170
300

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
