Series Hydraulic Impact Crusher
6FX

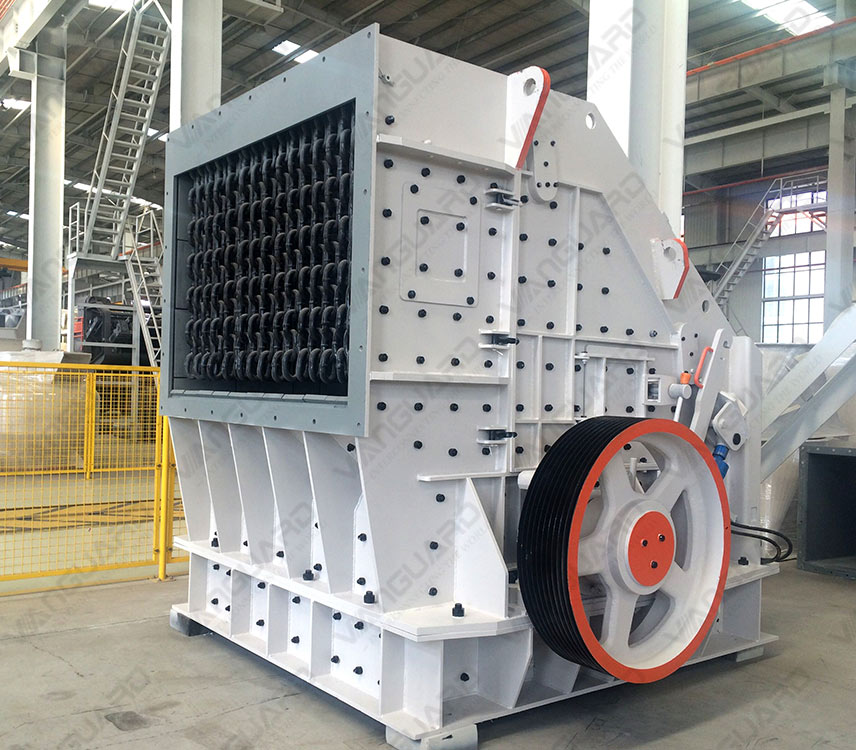

6FX Series Hydraulic Impact Crusher is another new breakthrough in the field of mine crushing equipment by Vanguard's technical engineers.The impact crusher are designed for crushing particle sizes less than 700mm and compression strength no more than 360MPa. Compared with traditional impact crusher its crushing ratio is greatly increased.

WATCH VIDEO

TECHNICAL DATA

Model	Max. Feeding Size (mm)	Product Particle Size(mm)	Capacity (t/h)	Power(kW)
6FX1010	400×400×500	20-100	70-150	90-132
6FX1210	400×400×600	20-100	100-285	110-160
6FX1214	400×400×600	20-100	150-400	160-200
6FX1315	400×400×700	20-100	180-500	200-250
6FX1317	400×400×700	20-100	200-600	200-315
6FX1415	600×600×900	100-200	400-700	315-400
6FX1620	600×600×1000	100-200	600-900	400-500

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
