Series Multi-Cylinder Hydraulic Cone Crusher
CP

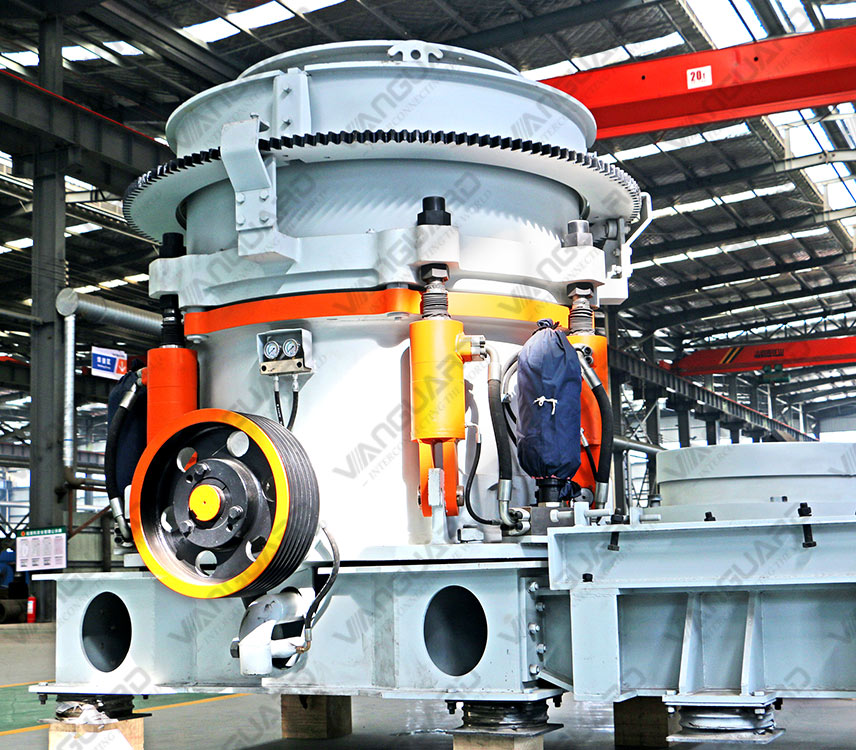

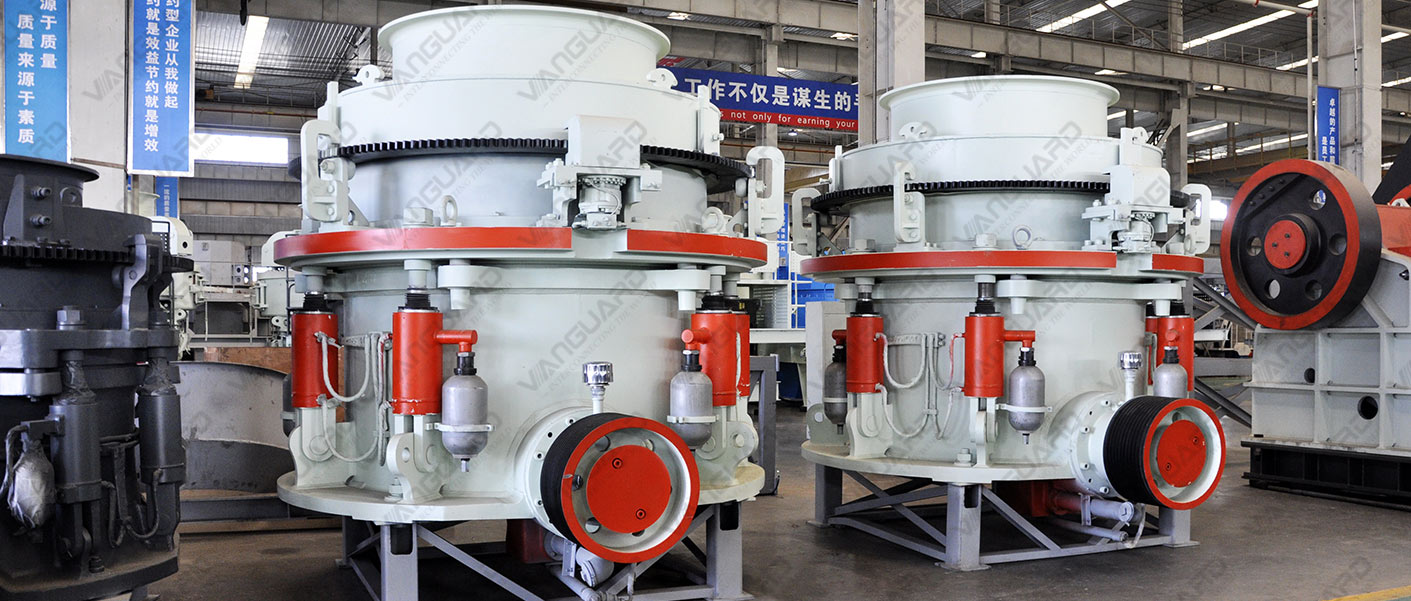

CP series multi-cylinder hydraulic cone crusher is mainly used for secondary crushing and tertiary crushing linked in metal ore and construction sand and stone processing. With strong crushing ability and large capacity, it is commonly used for crushing medium and hard materials.

WATCH VIDEO

TECHNICAL DATA

Model	Cavity	Open side feeding size(mm)	Closed side feeding size(mm)	Discharge Port Size(mm)	Potencia del motor(kW)	Production capacity under tight side discharge (CSS) (t/h)
						6 mm	8 mm	10 mm	13 mm	16 mm	19mm	22 mm	25 mm	32 mm	38 mm	45 mm	51mm
CP200	C2 Coarse	235	190	19	160	60-75	70-90	85-115	115-145	135-175	145-185	155-195	165-215	185-230	205-245
	M Middle	171	120	16
	F1 Fine	150	95	13
	F2 Extra fine	116	70	8
CP300	C1 Extra Coarse	265	230	25	220	75-95	100-130	110-140	145-180	170-215	190-230	220-260	225-275	245-320	300-375	345-430
	C2 Coarse	240	210	20
	M Middle	190	150	15
	F1 Fine	145	105	11
	F2 Extra fine	120	80	8
CP400	C1 Extra Coarse	360	290	30	315		105-140	135-170	180-225	215-275	250-320	275-345	285-365	315-425	350-480	400-540	455-615
	C2 Coarse	310	250	25
	M Middle	260	196	20
	F1 Fine	182	110	13
	F2 Extra fine	135	90	10
CP500	C1 Extra Coarse	370	330	38	400		135-170	170-220	225-290	270-345	310-400	340-425	360-450	400-530	425-585	500-670	560-770
	C2 Coarse	320	290	28
	M Middle	245	210	22
	F1 Fine	180	130	13
	F2 Extra fine	150	95	10
CP800	C1 Extra Coarse	450	352	38	630			240-335	315-420	375-500	420-540	465-590	490-725	545-790	585-920	670-990	765-110 0
	C2 Coarse	373	298	32
	M Middle	340	275	25
	F1 Fine	280	230	16
	F2 Extra fine	235	150	10

The above capacity is based on 1.6T/m³ material density under open circular crushing plant.The capacity is related to physical properties of the crushing material, feeding size and its composition, and the actual capacity may be different due to different conditions.

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
