Series Symons Cone Crusher
CSV

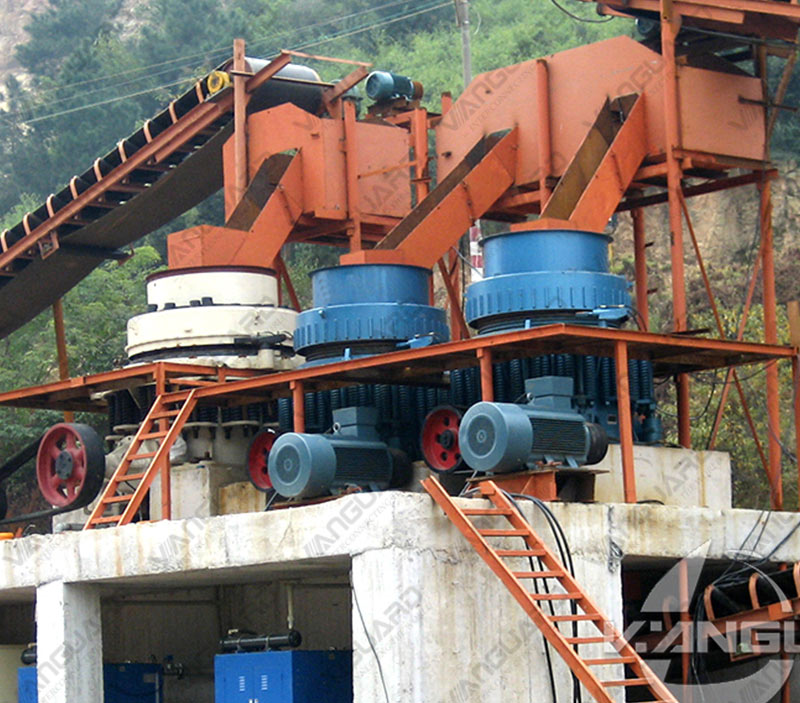

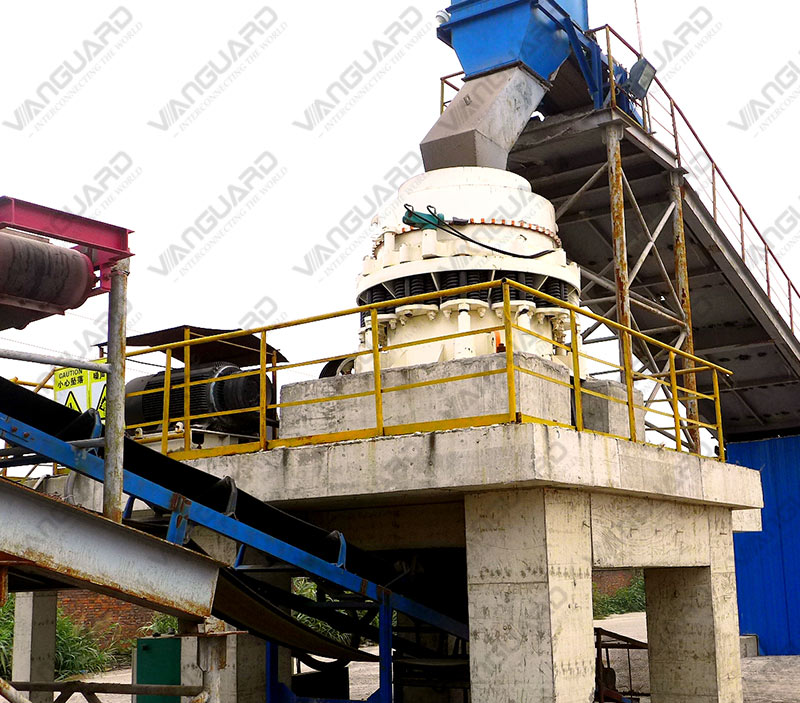

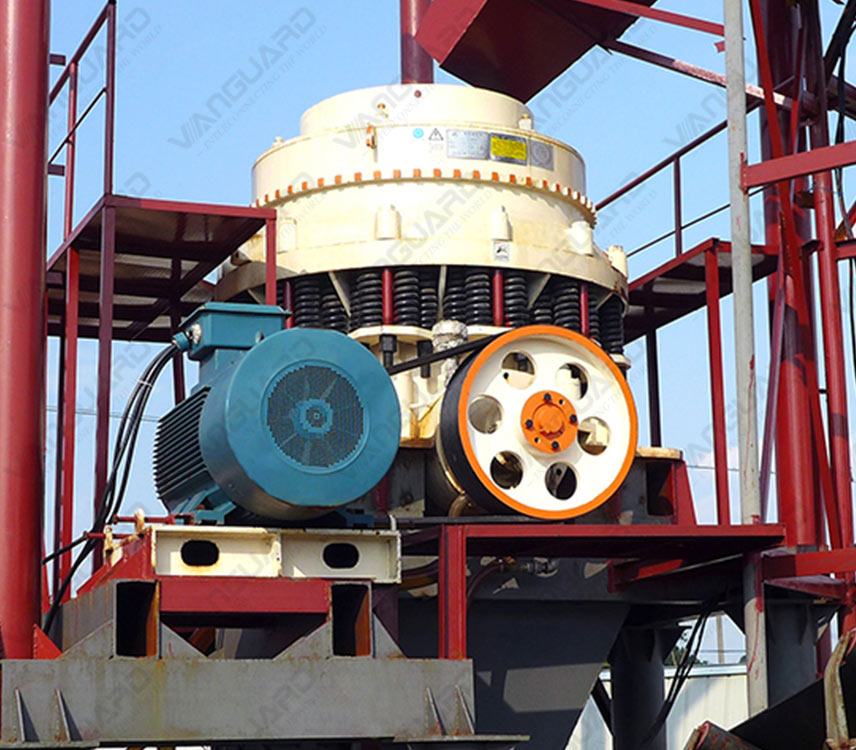

The CSV Series Symons Cone Crusher is suitable for crushing all kinds of ores and rocks with medium or above hardness. Compared with PY Series Spring Cone Crusher it has the characteristics of reliable structure high production efficiency and convenient adjustment.

WATCH VIDEO

TECHNICAL DATA

Model	Cavity Type	Max. Feeding Size (mm)	Min. Discharging Port Size(mm)	Motor Power(kw)	Closed Edge Material- discharging Port (mm) Capacity (t/h )
					Closed Edge Material- discharging Port (mm) Capacity (t/h )
					6	10	13	16	19	22	25	38	51	64
CSV60	C	95	10	45		20	25	30	35	45	50	75
CSV60	M	72	6	45	18	20	25	30	35	40	45	60
CSV110	C	160	13	110			80	100	135	150	175	235
	M	115	10			65	75	90	120	135	150
	F	80	8		50	55	65	70	95
	EF	50	6		52	62	72	78	102
CSV132	C	180	13	132			115	135	150	180	200	260
	M	130	10			100	110	120	135	165	175
	F	90	10			80	105	110	140
	EF	60	6		60	74	105	110	130
CSV160	C	200	16	160				150	180	200	230	310	390
	M	150	13				115	140	160	190	210
	F	102	10			90	115	145	160
	EF	70	8			88	110	135	155
CSV200	C	215	19	200					200	220	260	330	420
	M	160	16					155	180	200	220
	F	115	13				150	190	210	230
	EF	76	8			122	148	185	200
CSV250	C	235	22	250					240	265	300	400	510	570
	M	175	19						215	240	265	320
	F	130	13				180	210	235	255	275
	EF	90	10			148	178	220	265
CSV315	C	360	22	315						330	390	525	655	725
	M	203	16					230	270	300	330
	F	140	13				185	225	265	340
	EF	95	10				180	220	260	335

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
