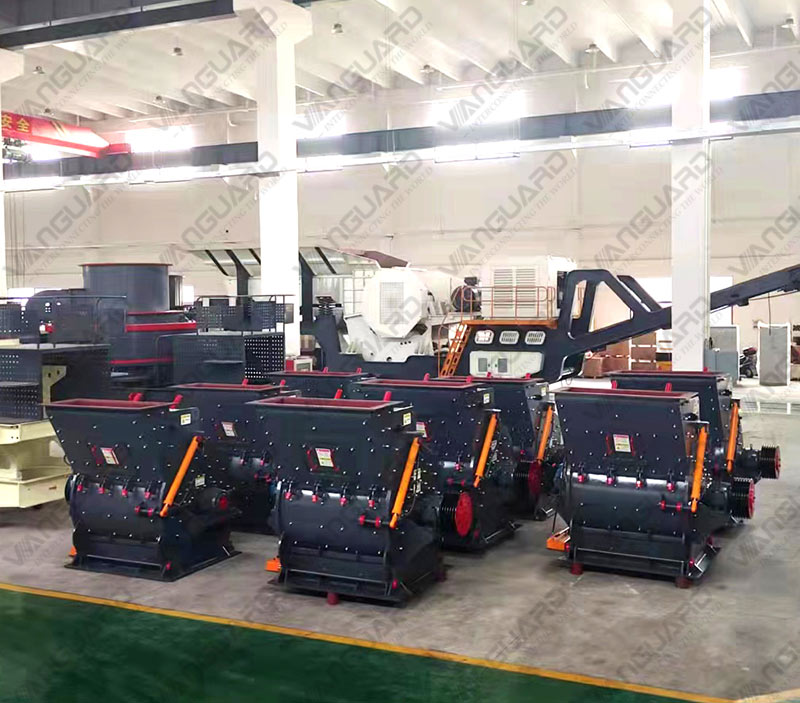

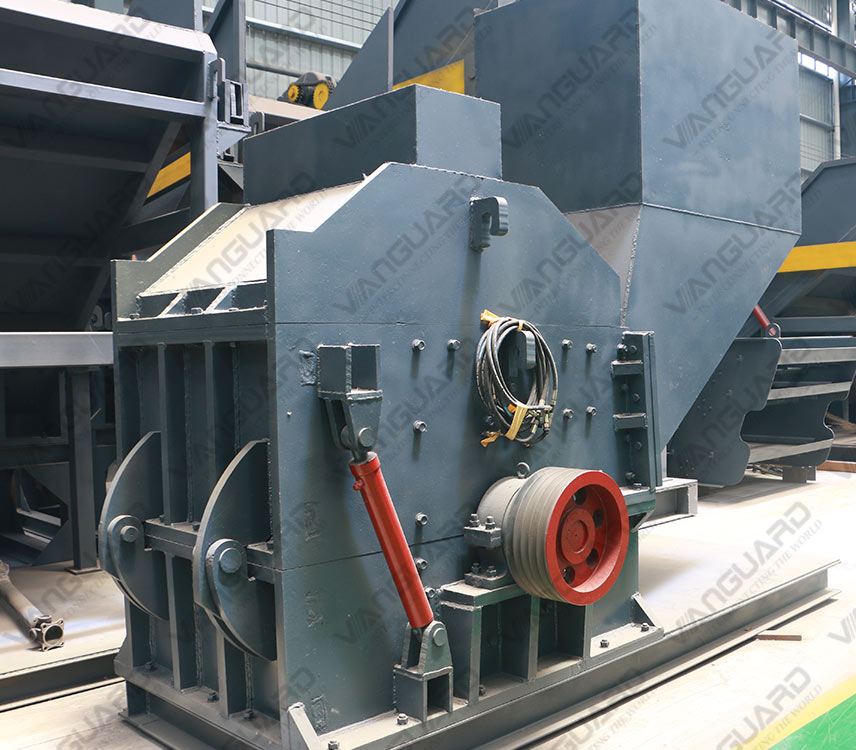

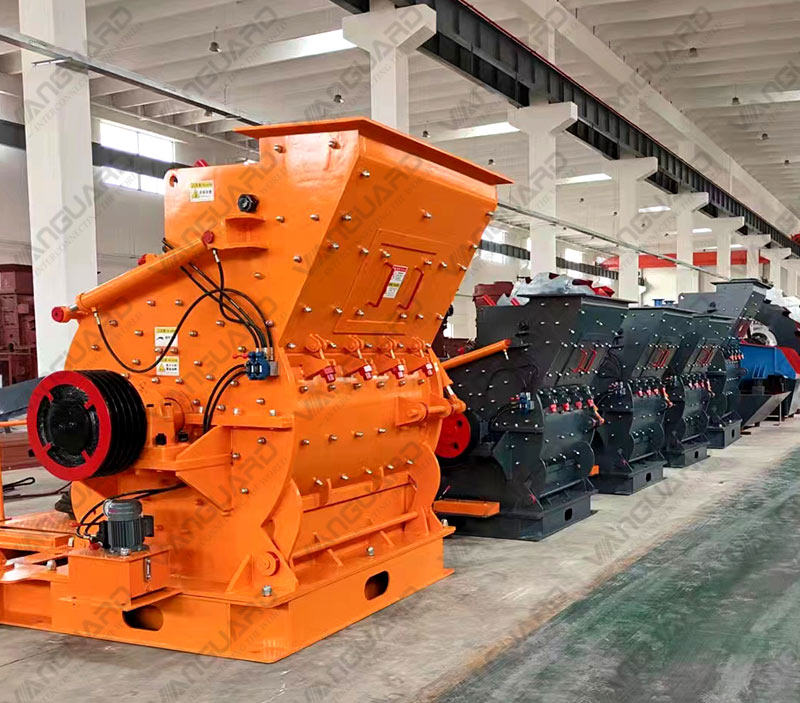

heavy duty hammer crusher
PCZ

Adopt unique design of no grate bars to control the discharging particle size. After the abrasion width of the discharge port of the equipment is increased the bolts at the discharge port can be directly adjusted which is convenient and quick; Wear resistant retainer added to rotor makes the hammer more durable.

WATCH VIDEO

TECHNICAL DATA

Model	Diameter of rotor(mm)	Input opening size(mm)	Feed size(mm)	Capacity (t/h)	Power(kW)	Dimensions(mm)
PCZ1308	1310×790	850×800	≤600	100-160	132	2818×2100×2390
PCZ1510	1500×900	1000×900	≤700	160-210	132×2	3260×2414×2750
PCZ1512	1500×1160	1200×900	≤750	250-320	160×2	3260×2624×2750
PCZ1615	1650×1452	1500×1200	≤1000	360-420	200×2	3456×2915×3185
PCZ1620	1660×1900	2000×1200	≤1200	800-1000	315×2	3500×3100×3200
PCZ1820	1800×1964	2000×1200	≤1200	1000-1200	450×2	3270×3210×3520

Model	Diameter of rotor(mm)	Input opening size(mm)	Feed size(mm)	Capacity (t/h)	Power(kW)	Dimensions(mm)
XPC0706	700×750	618×510	≤400	50-70	75	1950×1340×1480
XPC0808	800×750	780×610	≤500	80-100	132	2280×1790×1670
XPC0910	900×1000	1070×750	≤600	150-200	110×2	2600×2200×1940
XPC1012	1000×1180	1255×810	≤650	250-300	132×2	2800×2310×2210
XPC1213	1200×1280	1350×900	≤750	300-350	160×2	2970×2580×2510
XPC1216	1270×1490	1530×920	≤750	400-500	200×2	3070×2840×2580
XPC1220	1220×1950	2000×920	≤750	500-600	220×2	3080×3380×2580

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
