Series Hydraulic Jaw Crusher
PEW

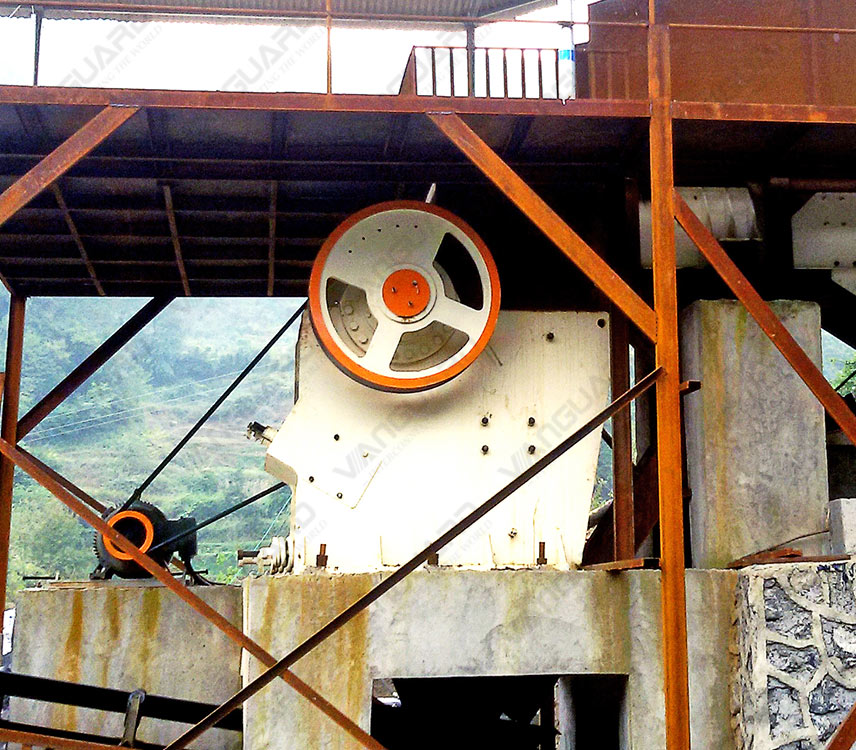

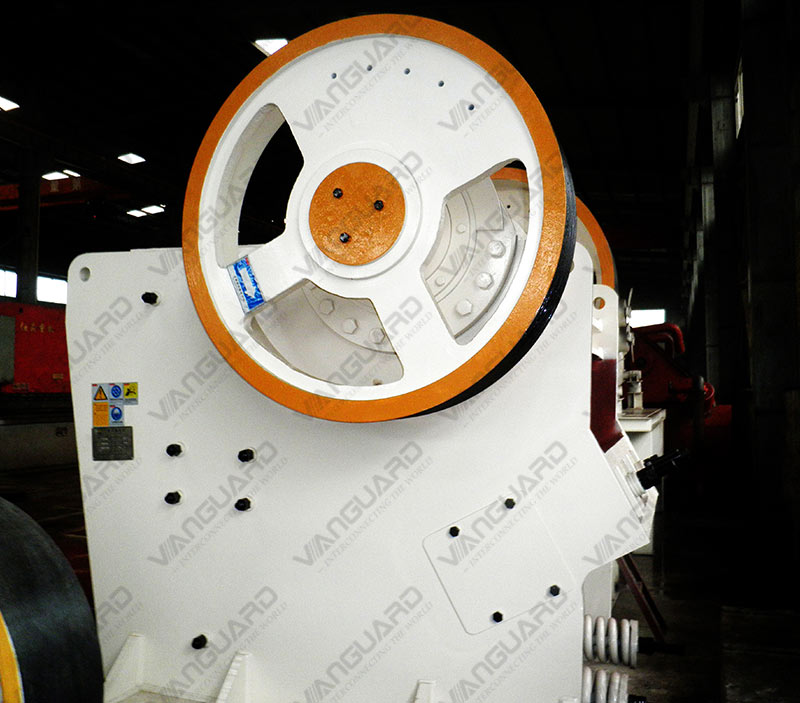

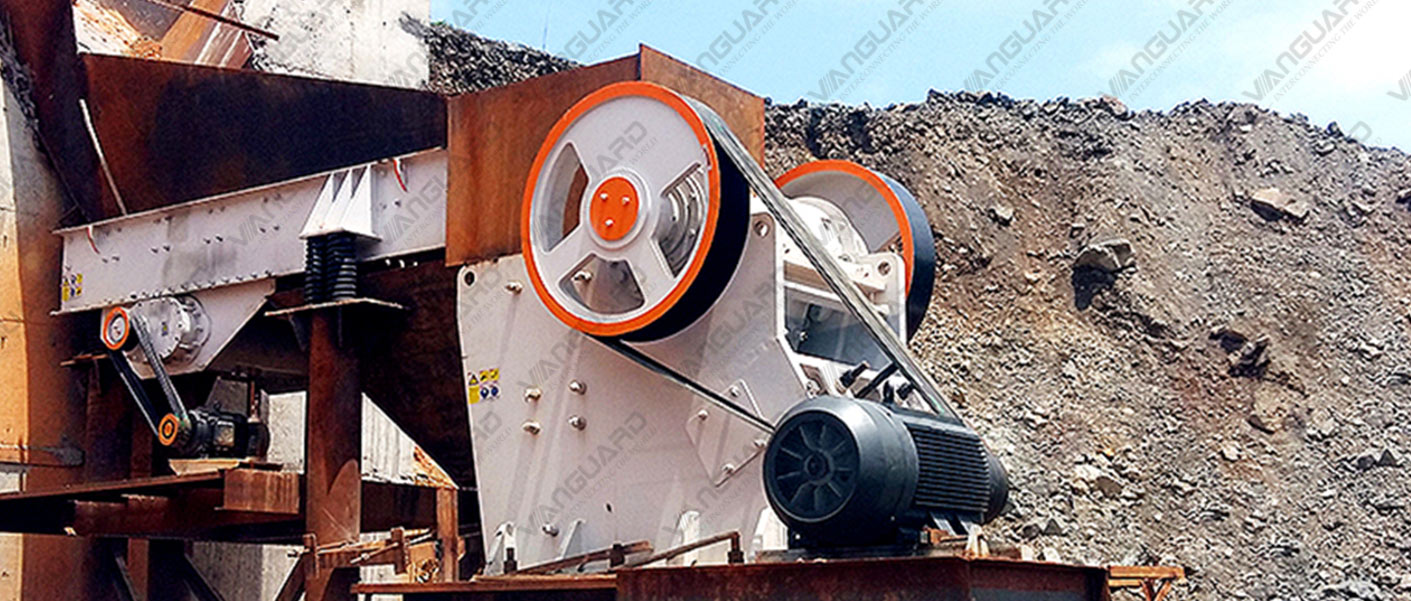

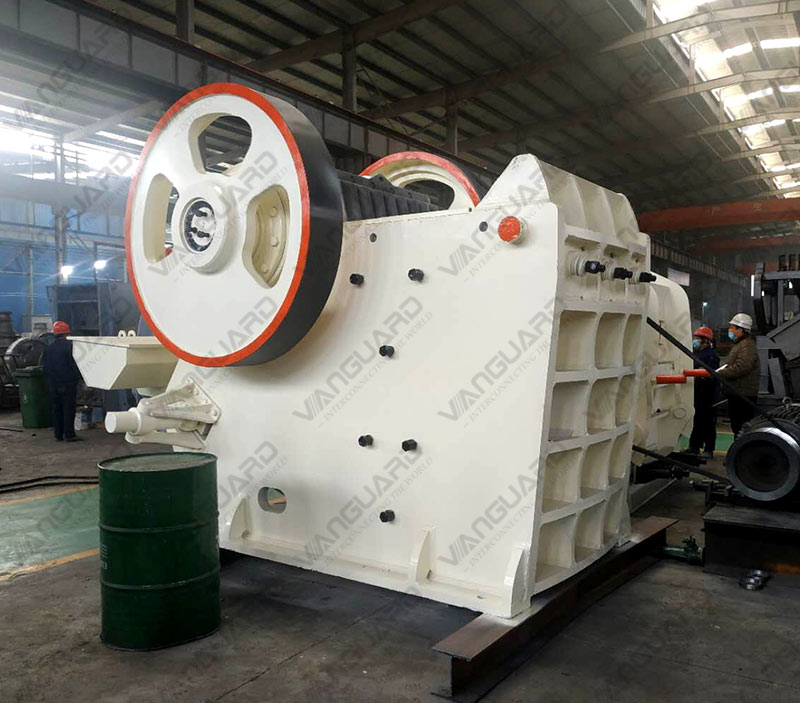

The PEW series hydraulic jaw crusher is a new equipment for crushing hard or abrasive stones. The PEW series hydraulic jaw crushers are sold well in the market because of the disassembly frame without welding structure double wedge adjusting device elastic limit damping device and integrated motor base.

WATCH VIDEO

TECHNICAL DATA

Model		PEW860	PEW1100	PEW200×1300	PEW250×1000	PEW250×1200	PEW400×600
Feeding Opening(mm)		860×1100	1100×1200	200×1300	250×1000	250×1200	400×600
Feeding Size(mm)		≤720	≤930	≤180	≤220	≤220	≤350
Discharge Setting(mm)		100-225	150-275	10-30	20-40	20-40	35-85
Eccentric Shaft Rotation Speed(rpm)		240	210	320	330	330	250
Capacity(t/h)		200-500	300-650	12-35	15-50	20-50	15-70
Electric Motor	Power(kW)	132～160	185～200	30～37	30～37	37～45	37～45
Electric Motor	Rotation Speed(rpm)	985	740	980	980	980	980
Overall Dimension(L×W×H)(mm)		3300×2320×3120	4140×2660×3560	1320×2150×1175	1400×1850×1310	1400×2050×1310	1920×1460×1840
Weight(kg)		32000	59200	7500	6800	7800	8000

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
