fine crusher
PXJ
This series of fine crushers have stable and reliable operating performance with a simplified process, simple structure and convenient maintenance. Large production capacity with a long service life of the hammer head. It is widely used for the fine crushing of various minerals such as granite, basalt, limestone, and riverstone.

WATCH VIDEO

TECHNICAL DATA
Model | Input Opening Size(mm) | Feeding Size(mm) | Output Size(mm) | Adjustment Range of Discharging(mm) | Capacity(t/h) | Power(kw) |
PXJ800*400 | 400*185 | < 120 | <5 | 5-20 | 20-30 | 37 |
PXJ800*600 | 500*250 | <180 | <5 | 5-20 | 35-40 | 37 |
PXJ800*800 | 550*330 | <180 | <5 | 5-20 | 35-45 | 45 |
PXJ1010*1010 | 1000*350 | <180 | <5 | 5-20 | 45-55 | 75 |
PXJ1010*1012 | 1200*400 | <180 | <5 | 5-20 | 80-110 | 90 |
PXJ1200*1200 | 1200*450 | <180 | <5 | 5-20 | 100-110 | 132 |
PXJ1400*1400 | 1500*500 | <190 | <5 | 5-20 | 100-150 | 160 |
PXJ1600*1600 | 1600*550 | <190 | <5 | 5-20 | 170-210 | 200 |
PXJ1800*1800 | 1800*800 | <190 | <5 | 5-20 | 250-300 | 315 |
*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.

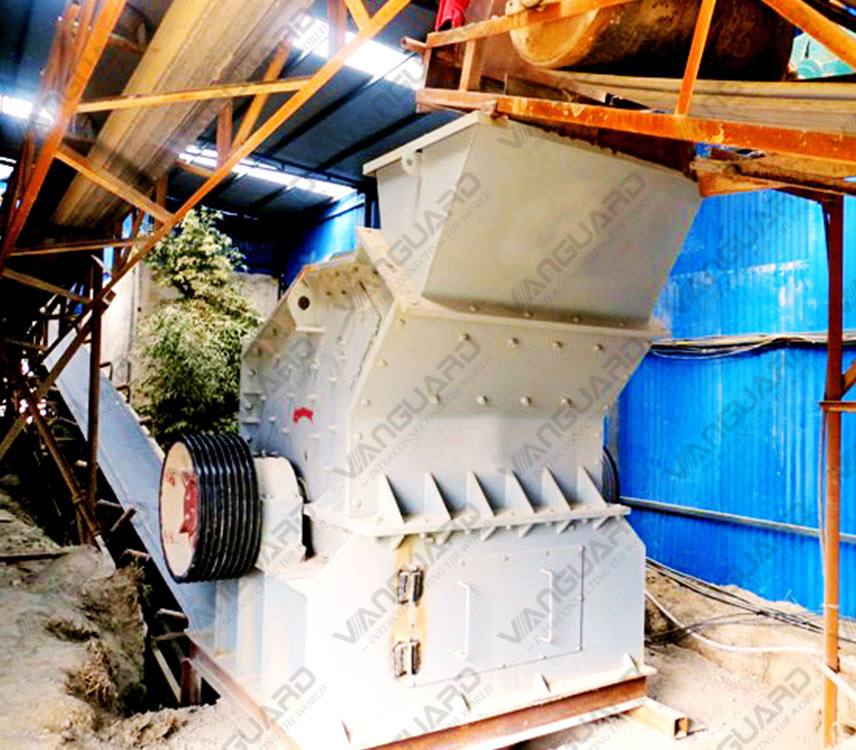

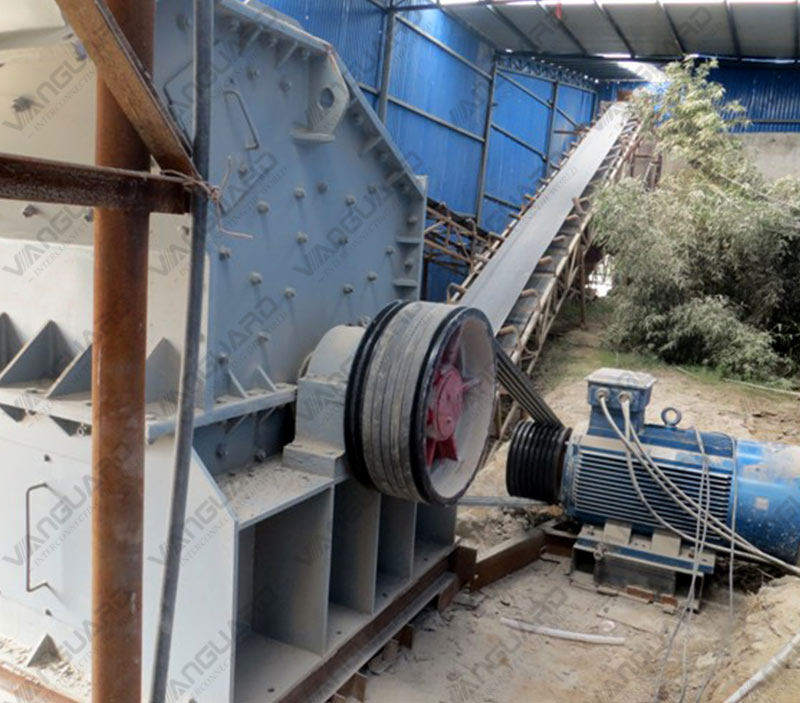

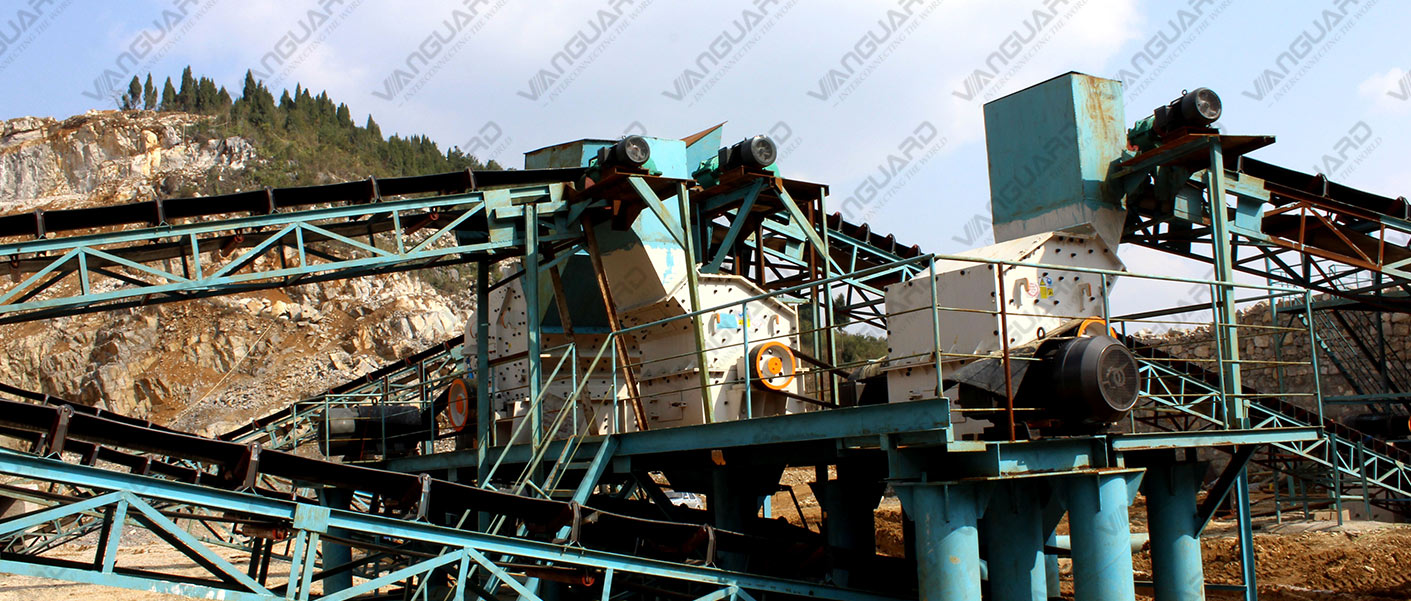

PLANT INSTALLATION
