Series Jaw Crushing Plant
MBP

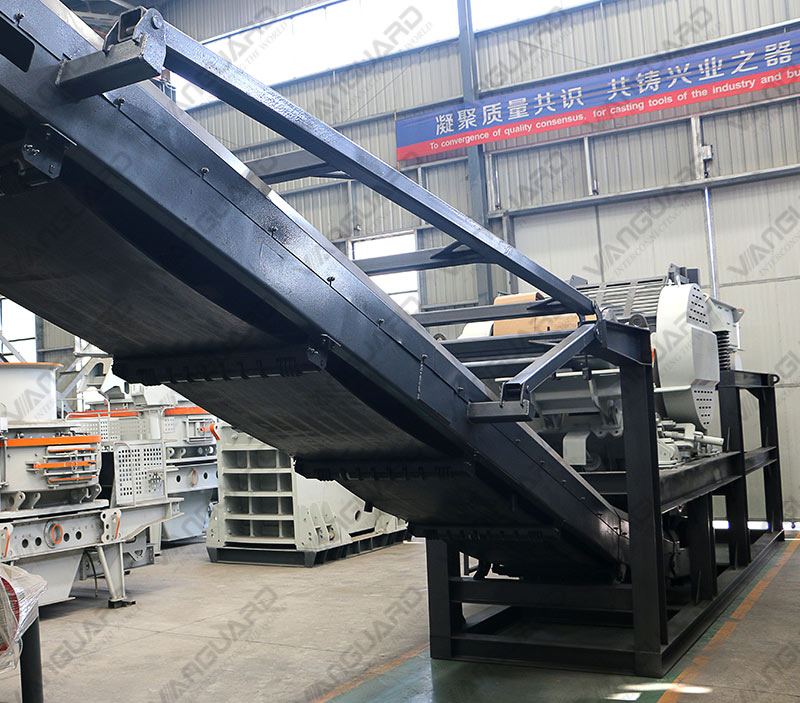

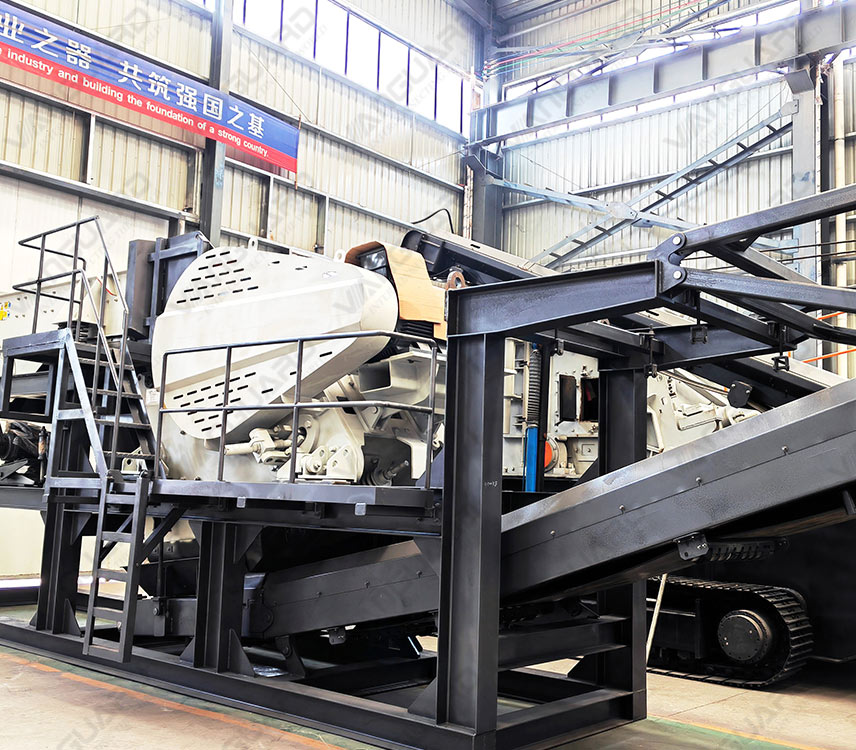

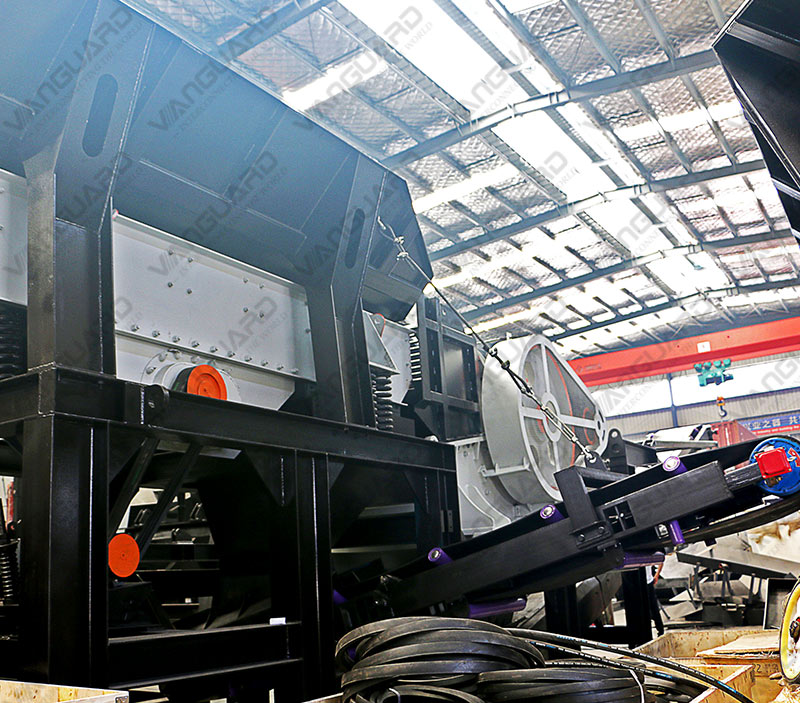

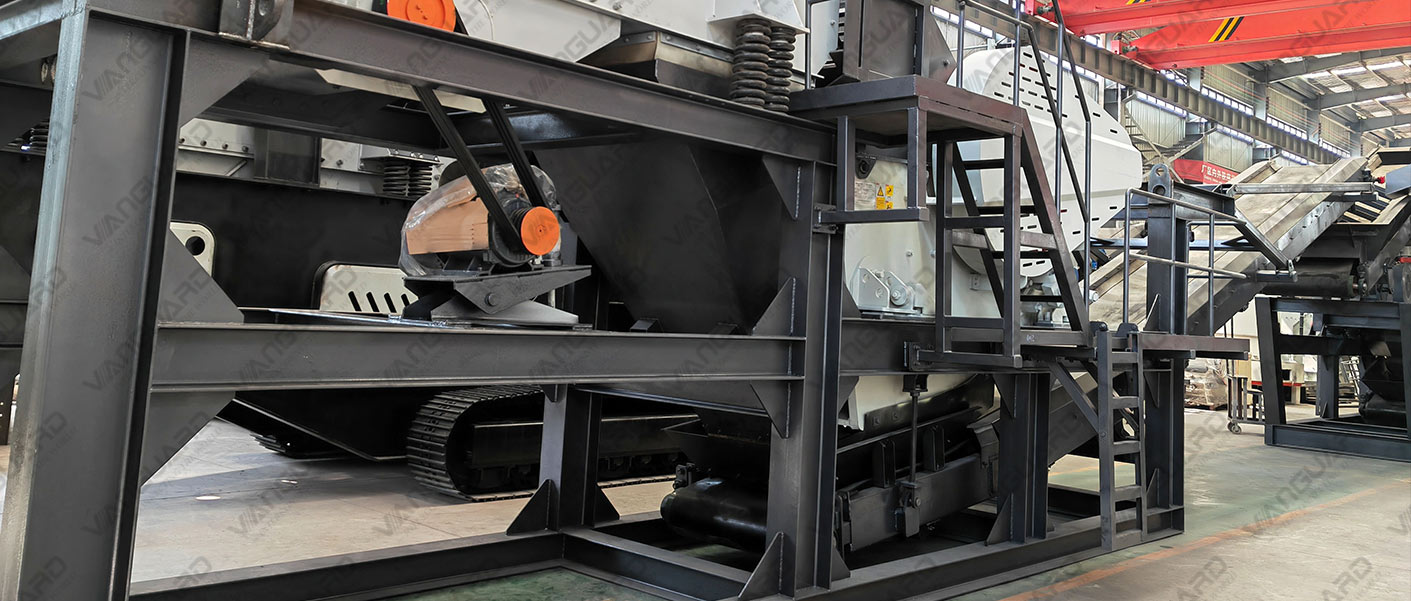

MBP series jaw crushing plant uses the optimized frame structure and movable jaw design, mainly used for the coarse crushing of minerals and rocks. According to the different production capacity, it can be designed and matched with different specifications of the feeder, jaw crusher, belt conveyor and other modular structural parts.

TECHNICAL DATA

Project	Device Name		Models and Specifications	Power (kW)	Amount
Project	Device Name		Models and Specifications	Power (kW)	Amount
C106 Jaw Crusher + ZSW4211 Feeder	feeding machine	equipment	ZSW4211	/	1
	feeding machine	motor	Standard	15	1
	jaw crusher	equipment	C106	/	1
		triangle belt	Standard	/	10
		motor	Standard	110	1
	Modular steel structure		Standard	/	1
	main conveyor	Specification	B1000*12m	11	1
	main conveyor	drive mode	electric drum drive	/	1
	magnetic separator	Specification	RCYQ-10	2.2	1
	magnetic separator	drive mode	reducer	/	1
	Electrical System	Electric control cabinet	Feeder motor variable frequency speed regulation, host soft start, electrical components Chint	/	1 set
				/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 138.2KW

Project	Device Name		Models and Specifications	Power (kW)	Amount
Project	Device Name		Models and Specifications	Power (kW)	Amount
PE57 Jaw Crusher + ZSW3090 Feeder	feeding machine	equipment	ZSW3090	/	1
	feeding machine	motor	Standard	11	1
	jaw crusher	equipment	PE57	/	1
		triangle belt	Standard	/	5
		motor	Standard	55	1
	Modular steel structure		Standard	/	1
	main conveyor	Specification	B650*12m	5.5	1
	main conveyor	drive mode	electric drum drive	/	1
	magnetic separator	Specification	RCYQ-6.5	1.5	1
	magnetic separator	drive mode	reducer	/	1
	Electrical System	Electric control cabinet	Feeder motor variable frequency speed regulation, host soft start, electrical components Chint	/	1 set
				/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 73KW

Project	Device Name		Models and Specifications	Power (kW)	Amount)
Project	Device Name		Models and Specifications	Power (kW)	Amount)
PE69 Jaw Crusher + ZSW3896 Feeder	feeding machine	equipment	ZSW3896	/	1
	feeding machine	motor	Standard	11	1
	jaw crusher	equipment	PE69	/	1
		triangle belt	Standard	/	5
		motor	Standard	75	1
	Modular steel structure		Standard	/	1
	main conveyor	Specification	B800 * 12m	7.5	1
	main conveyor	drive mode	electric drum drive	/	1
	magnetic separator	Specification	RCYQ-8	1.5	1
	magnetic separator	drive mode	reducer	/	1
	Electrical System	Electric control cabinet	Feeder motor variable frequency speed regulation, host soft start, electrical components Chint	/	1 set
				/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 95KW

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
