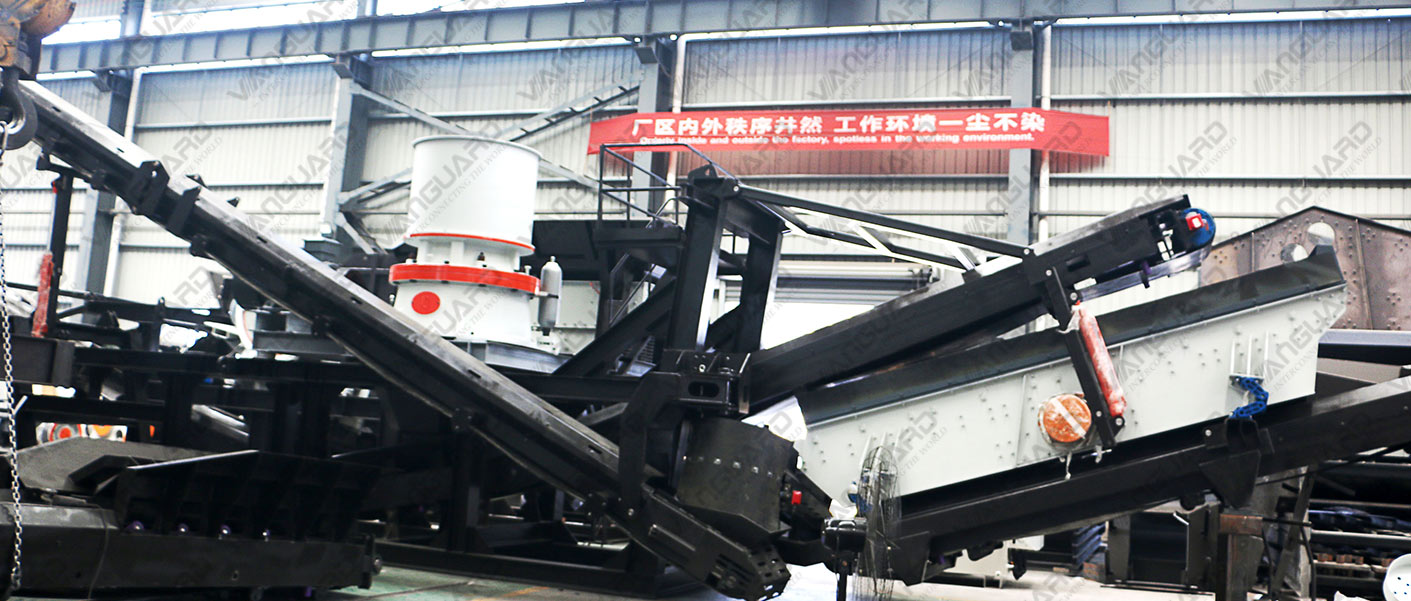

Series Mobile Cone Crushing Plant
MBP

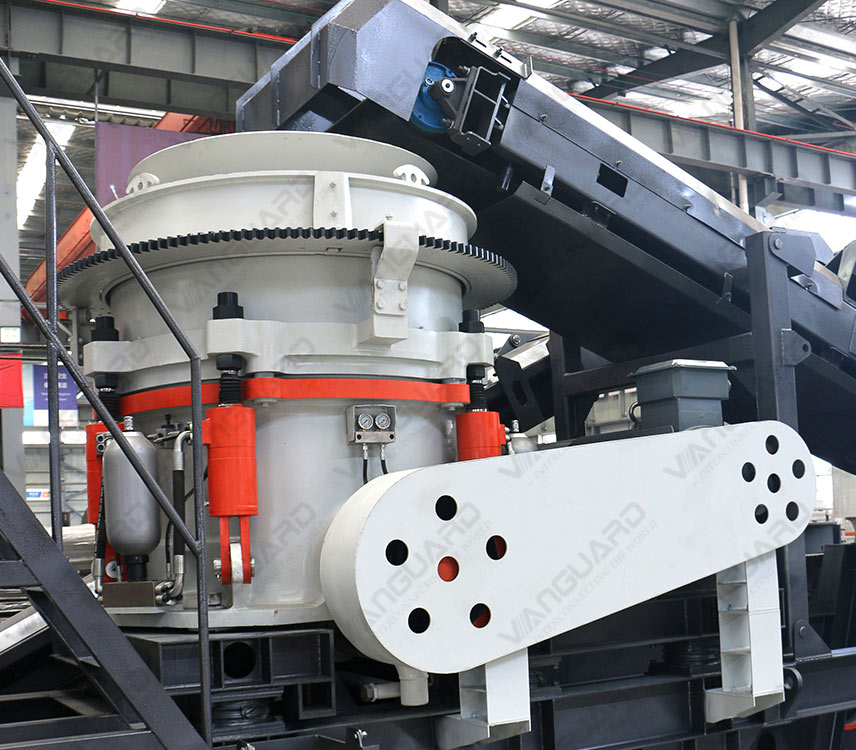

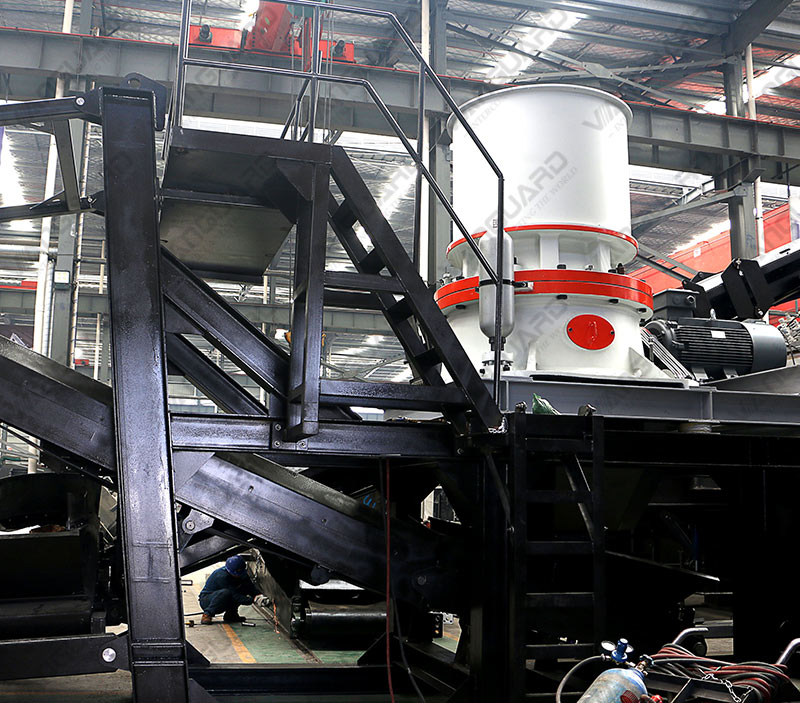

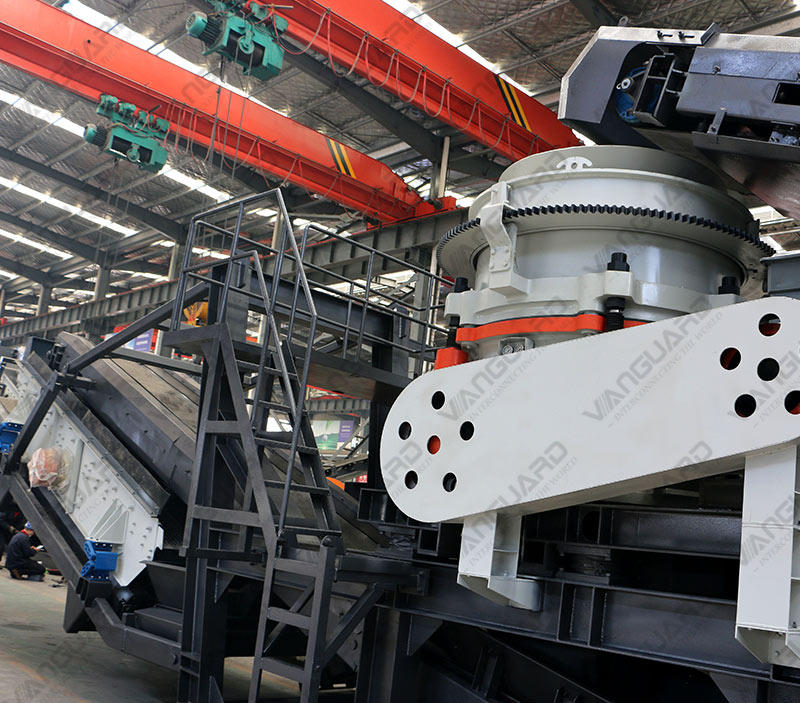

MBP series cone crusher is equipped with a cone crusher suitable for medium and fine crushing with excellent performance, special crushing wall and concave design, supplemented by curved cavity and hydraulic cavity cleaning system, which can effectively improve crushing efficiency and effectively reduce operation loss.

TECHNICAL DATA

Project	Device Name		Models and Specifications	Power (kW)	Amount
Project	Device Name		Models and Specifications	Power (kW)	Amount
HP300 cone crusher + 1542 return screen	cone crusher	equipment	HP300	/	1
		triangle belt	Standard	/	7
		motor	Standard	250	1
	return screen	equipment	1542	/	1
	return screen	vibration motor	Standard	3.7	2
	modular steel structure		Standard	/	1
	feeding conveyor	Specification	B1000*6m	7.5	1
	feeding conveyor	drive mode	electric drum drive	/	1
	main conveyor	Specification	B1000 * 8.7m	7.5	1
	main conveyor	drive mode	electric drum drive	/	1
	underscreen conveyor	Specification	B1200*6.2m	7.5	1
	underscreen conveyor	drive mode	electric drum drive	/	1
	transfer conveyor	Specification	B650*2m	3	1
	transfer conveyor	drive mode	electric drum drive	/	1
	return conveyor	Specification	B500*9.5m	5.5	1
	return conveyor	drive mode	electric drum drive	/	1
	Electrical System	Electric control cabinet	Host soft start, electrical components Chint	/	1 set
		Belt conveyor folding cylinder		/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 288.4KW

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
