Series Screening Plant
MBP

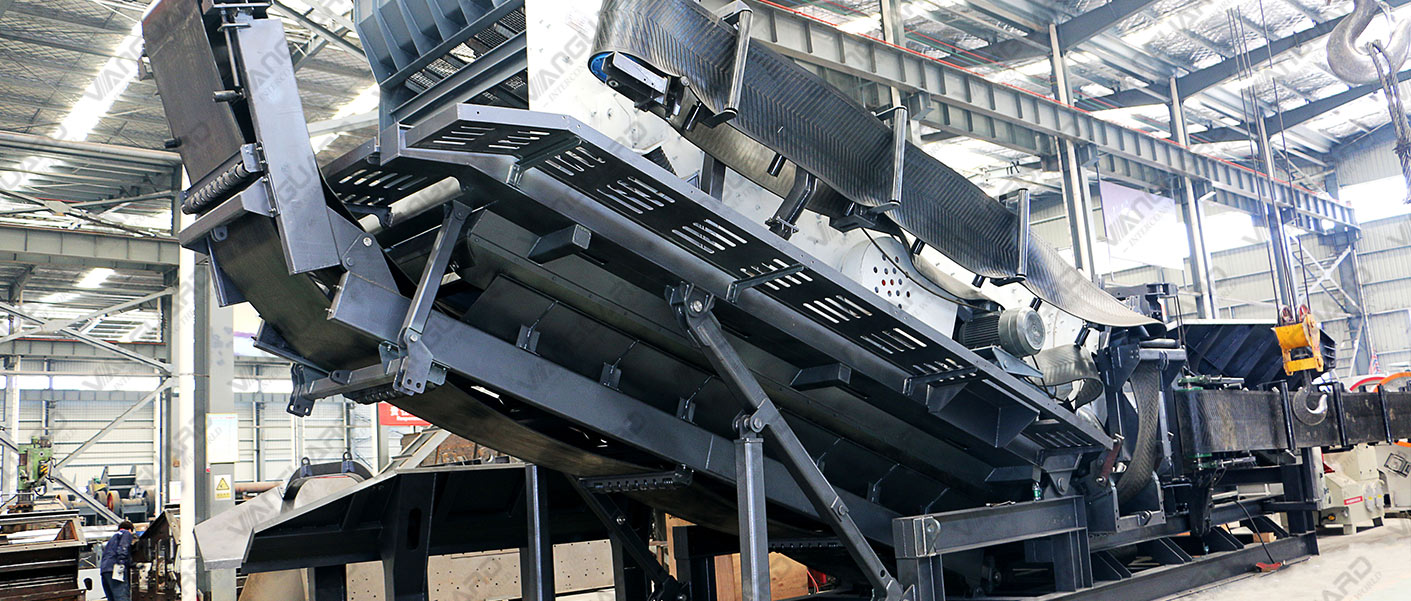

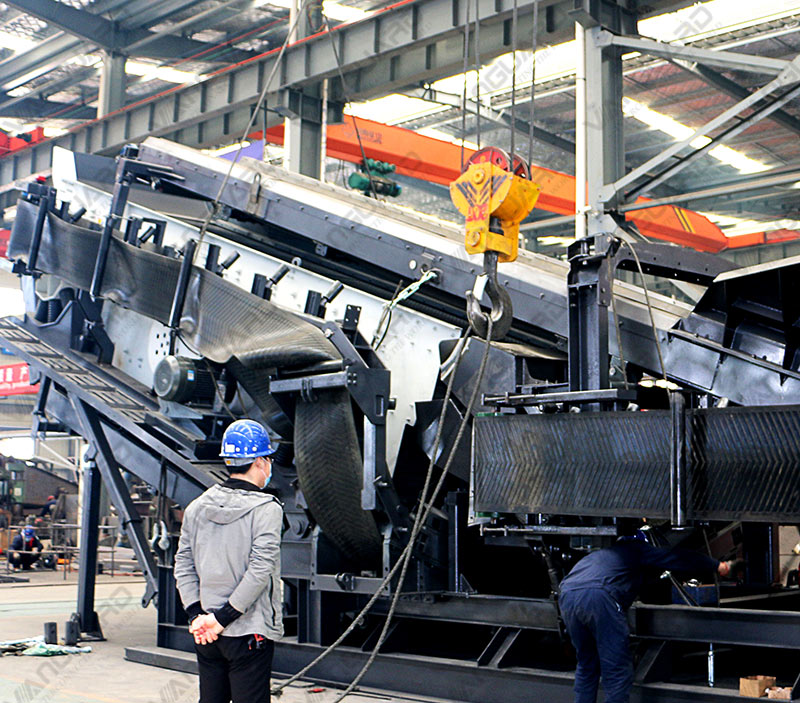

The MBP series of screening plant provide a wide and precise selection of the final product size to be screened. It is mainly used to match the coarse crushing module of jaw crusher and the medium and fine crushing module of cone crusher to screen and classify the crushed products.

TECHNICAL DATA

Project	Device Name		Models and Specifications	Power (kW)	Amount
Project	Device Name		Models and Specifications	Power (kW)	Amount

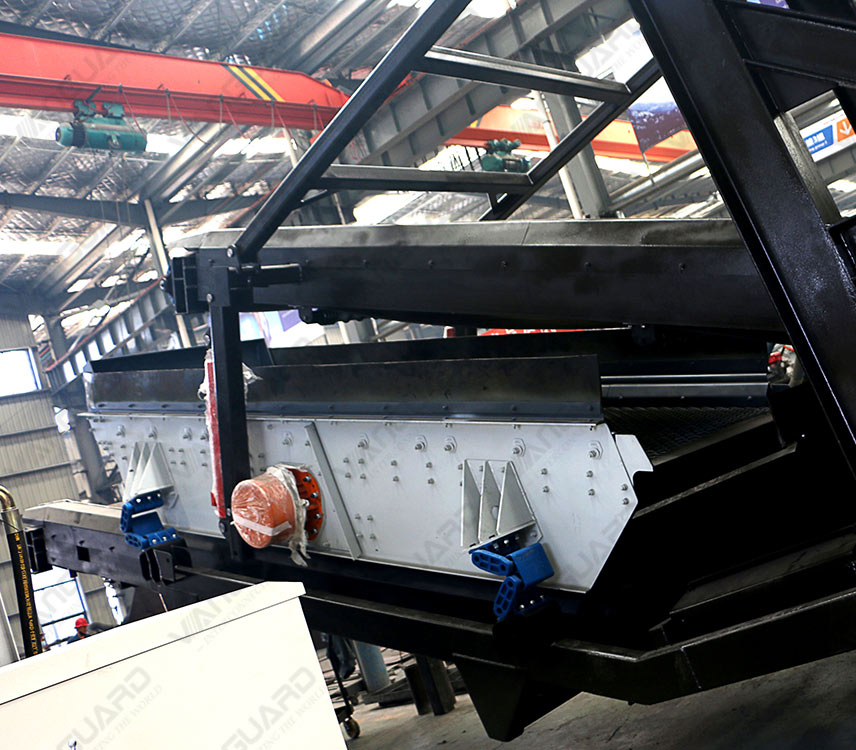

3YA2160 vibrating screen	vibrating screen	equipment	3YA2160	/	1
		triangle belt	Standard	/	5
		motor	Standard	30	1
	modular steel structure		Standard	/	1

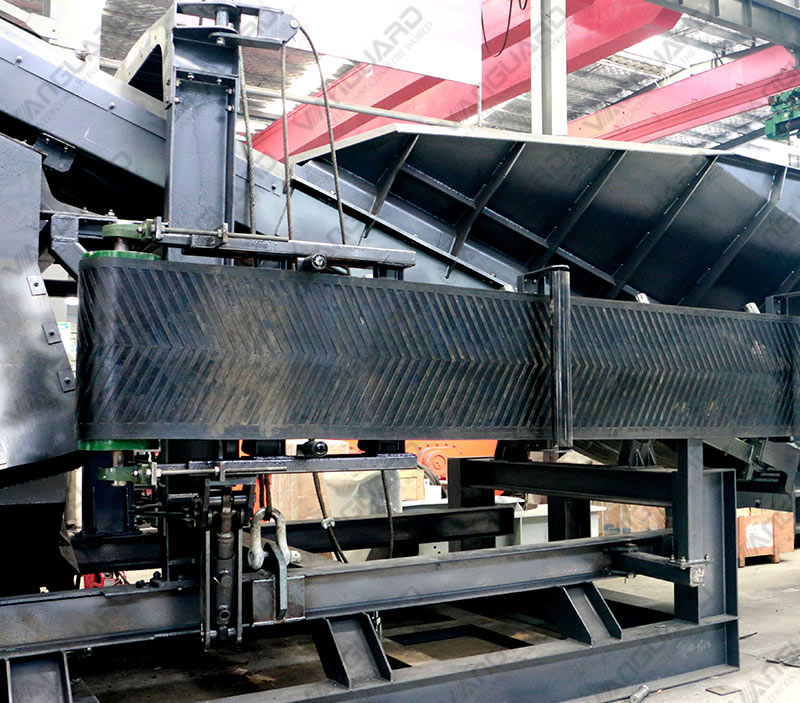

	main conveyor	Specification	B1200*11.5m	11	1
	main conveyor	drive mode	electric drum drive	/	1
	underscreen conveyor	Specification	B1000*8.5m	7.5	1
	underscreen conveyor	drive mode	electric drum drive	/	1
	large material conveyor	Specification	B650 * 7m	5.5	1
	large material conveyor	drive mode	electric drum drive	/	1
	medium material conveyor	Specification	B650*9.5m	5.5	1
	medium material conveyor	drive mode	electric drum drive	/	1
	medium and fine material conveyor	Specification	B650*9.5m	5.5	1
	medium and fine material conveyor	drive mode	electric drum drive	/	1
	Electrical System	Electric control cabinet	Host soft start, electrical components Chint	/	1 set
		Belt conveyor folding cylinder		/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 65KW

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
