Series Mobile Crushing Plant
VPE

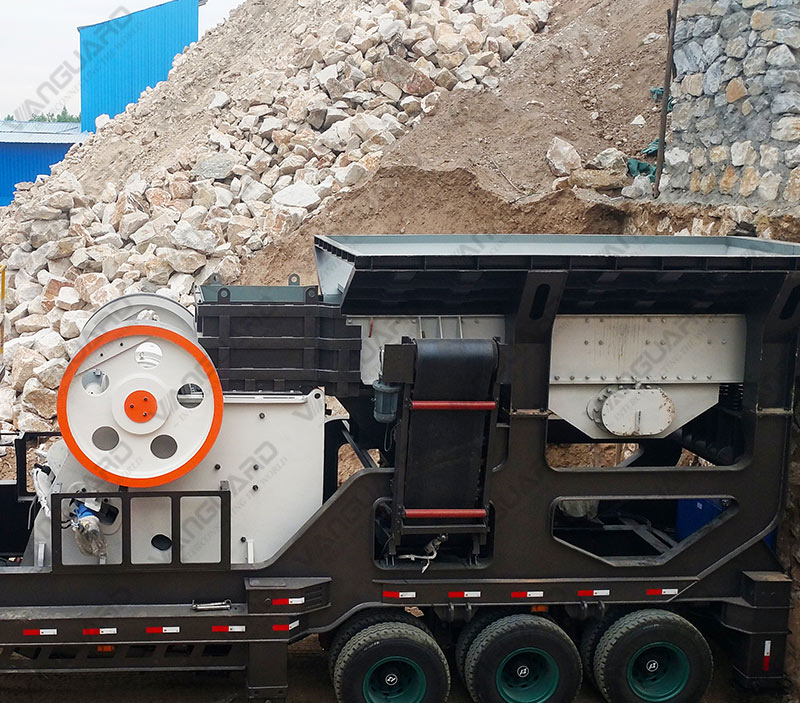

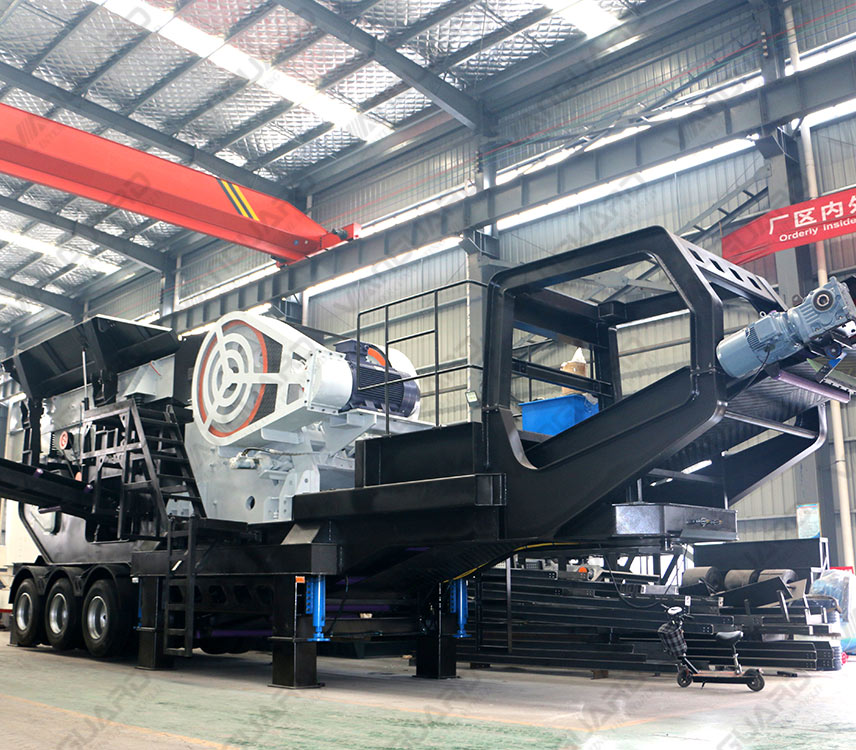

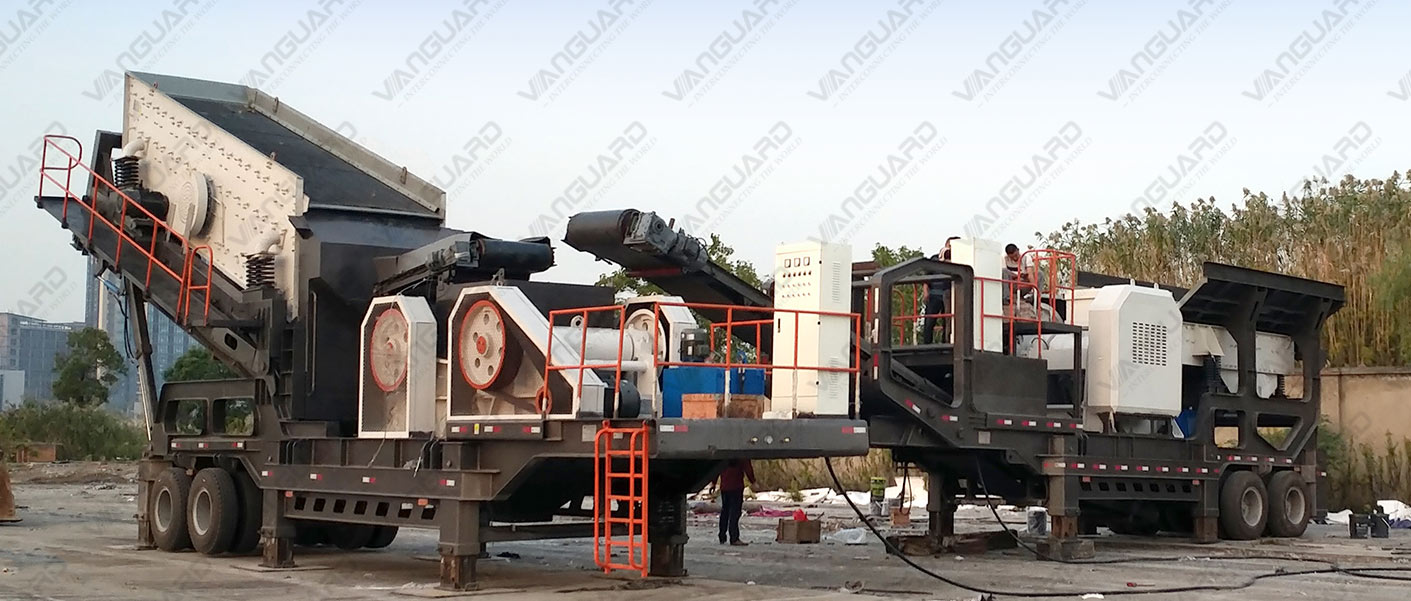

VPE Mobile Crusher Plant is a series of new rock crushing equipment developed by our company which can work in narrow and terrible conditions. It is convenient and flexible greatly increasing the coarse crushing in the fields of business ideas. It is mainly used for processing material in me

tallurgy chemistry building materials hydro power and other industries that often requires mobile base stations. It is especially suitable for the mobile crushing of stones in such areas as highways railways and hydropower project.

TECHNICAL DATA

Model	Vibrating Feeder	Crusher model	Max Feed Size (mm)	Number of Axles	Main Conveyor	Capacity (t/h)	Transportation Dimension(mm)
VPE57	ZSW3090	PE500×750	≤425	2	B650	45-100	12500×2600×3950
VPE69	ZSW3896	PE600×900	≤500	2	B800	60-160	12150×2600×3950
VPE750	ZSW4211	PE750×1060	≤630	3	B1000	110-320	13270×2850×4200
VPE96	ZSW3896	6CX96	≤500	2	B800	100-200	12150×2600×3950
VPE110	ZSW4211	6CX110	≤650	3	B1200	250-500	13200×3000×4400
VPP1310	ZSW3896	PCZ1310	≤600	2	B800	100-160	11500x2300x4000
VPP1410	ZSW4211	PCZ1410	≤700	3	B1000	160-210	1270026004300
VPP1512	ZSW4913	PCZ1512	≤750	3	B1200	250-320	1380028004500
VPFX1210	ZSW3896	6FX1210	≤600	2	B800	100-285	13270*2800x4200
VPFX1214	ZSW3896	6FX1214	≤600	2	B800	150-400	14500x2900x4500
VPFX1315	ZSW4211	6FX1315	≤700	3	B1000	180-500	15200x3000x4500

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
