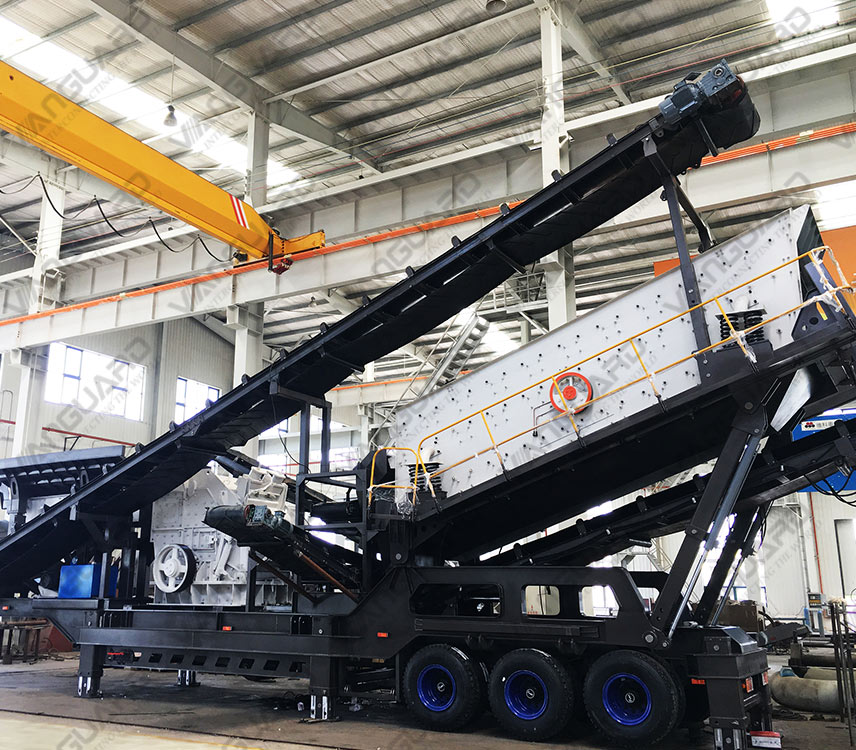

Series Combined Mobile Crushing Plant
VPM-3

For some special types of customers' site which want small and medium scale production need to be constantly moving and independently crushing production this type of modular series mobile station is a best choice.
The modular mobile station greatly expands the concept of coarse and fine crushing operations.

TECHNICAL DATA

Model	Vibrating Feeder	Crusher Model	Vibrating Screen	Max Feed Size(mm)	Number of Axles	Main Conveyor	Capacity (t/h)	Transportation Dimension(mm)
VPM-3 PCZ1310	ZSW3896	PCZ1310	YA1848	≤400	3	B650	120-380	1250×2600×3950
VPM-3 PCZ1510	ZSW4211	PCZ1310	YA2160	≤750	3	B1000	250-320	16500x2950x4500
VPM-3 PE57	ZSW3090	PE500×750	YA1848	≤425	3	B650	45-100	13000x2500x4500
VPM-3 PE69	ZSW3896	PE600×900	YA1860	≤500	3	B800	60-160	15800x2550x4500
VPM-3 CSV110	ZSW3090	CSV110	YA1848	≤160	2	B800	50-235	13000x2500x4500
VPM-3 CSV132	ZSW3090	CSV132	YA1848	≤180	3	B800	60-260	15800x2550x4500
VPM-3 FX1010	ZSW3090	6FX1010	YA1548	≤500	2	B650	70-150	13000x2500x4500
VPM-3 FX1210	ZSW3896	6FX1210	YA1848	≤600	2	B800	100-285	15800x2550x4200
VPM-3 FX1214	ZSW3896	6FX1214	YA1860	≤600	3	B800	150-400	15800x2550x4500
VPM-3 Fx1315	ZSW4211	6FX1315	YA2160	≤700	3	B1000	180-500	16500x3000x4500
VPM3 LF150	ZSW3896	LF150	YA1848	≤550	2	B800	100-200	15800x2550x4500
VPM3 LF250	ZSW4511	LF250	YA2160	≤600	3	B1000	200-400	15800x2550x4500

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
