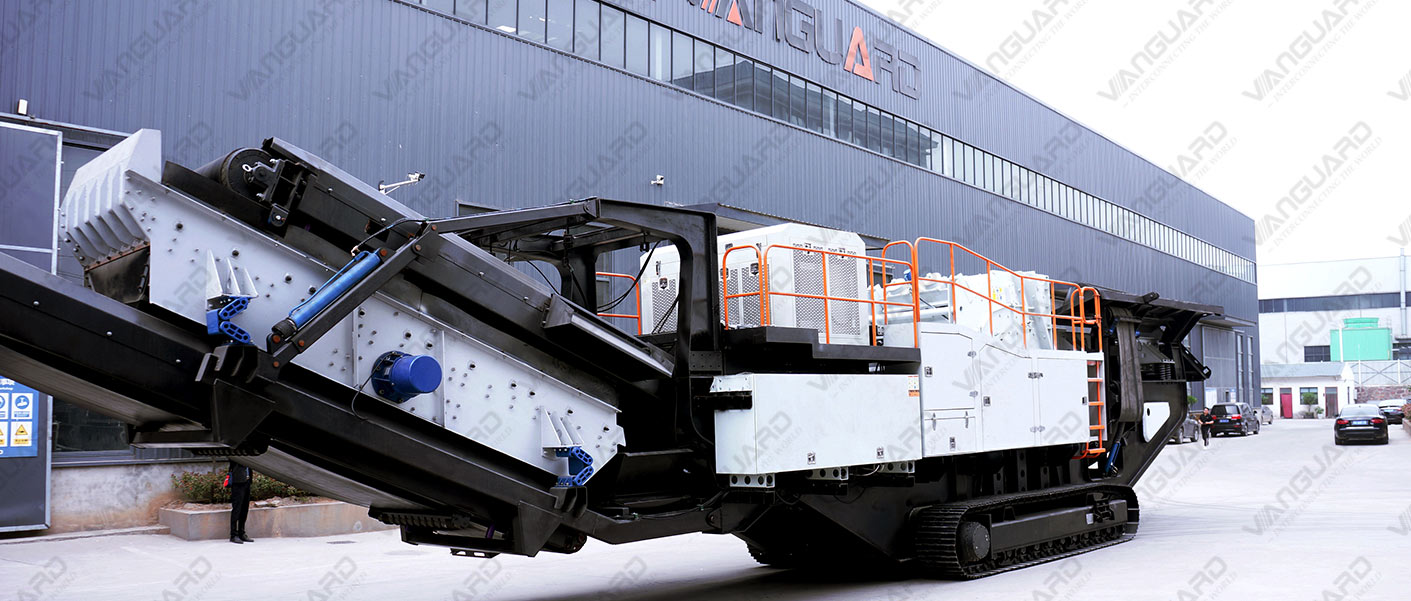

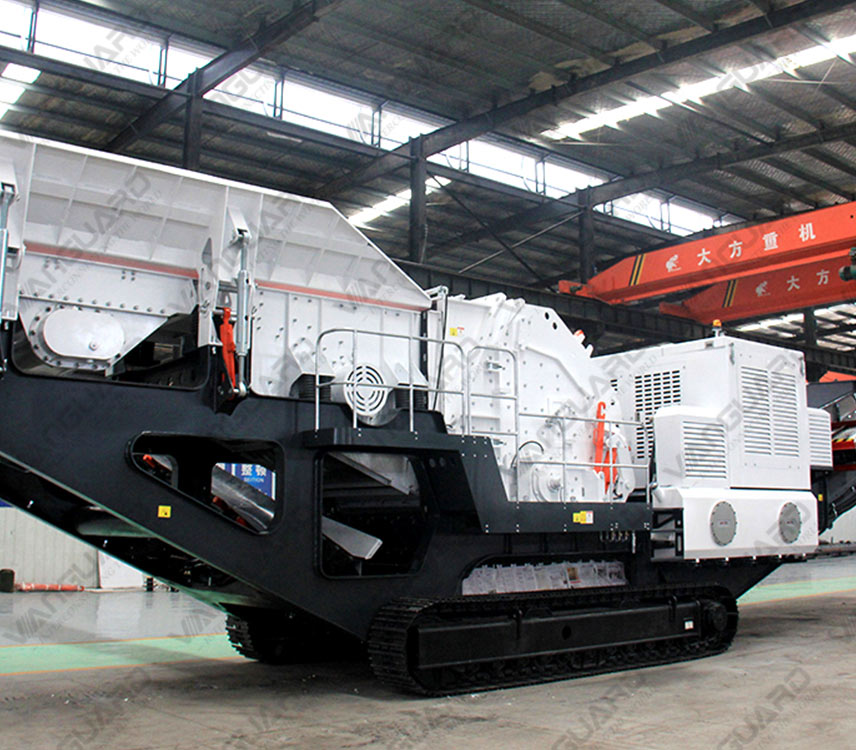

Type Mobile Impact Crushing Plant
Crawler

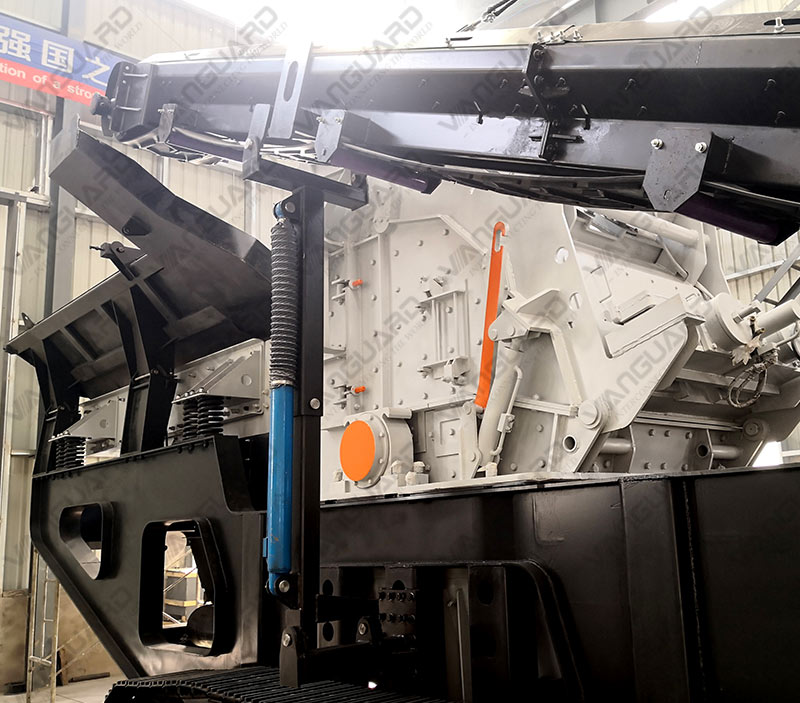

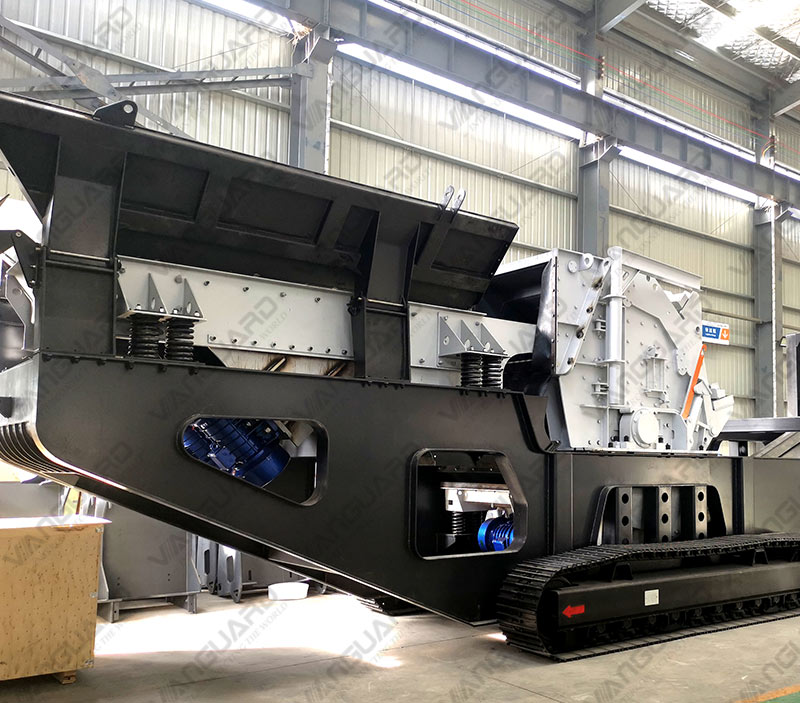

It is equipped with a hydraulic impact crusher, which not only has the advantages of high crushing capacity, low cost, high versatility, and adjustable particle size of the finished product. It can also ensure the excellent particle size and cleanliness of the finished product and meet the high standards of construction aggregates. It is equipped with a vibrating screen, which can realize the crushing and screening of materials in one stop. It can also be combined with other equipment to complete the crushing and screening of materials in a mobile and efficient manner.

TECHNICAL DATA

LA150 CRAWLER MOBILE IMPACT CRUSHING PLANT
Model		Items and specifications	Power (kw)	Quantity(set)
Feeding equipment	Equipment	GZDT3895	/	1
Feeding equipment	Vibration motor	Standard	5.5	2
Crushing equipment	Equipment	LF150	/	1
	Triangle belt	Standard	/
	Motor	Standard	160	1
Return screen	Equipment	1536	/	1
Return screen	Vibration motor	Standard	3.06	2
Frame	Hydraulic crawler chassis	Standard	/	1
Frame	Boat frame		/	1
Main conveyor	Specification	B1000*11m	11	1
Main conveyor	Drive method	Electric drum drive	/	1
Side out conveyor	Specification	B650*4m	3	1
Side out conveyor	Drive method	Electric drum drive	/	1
Under the screen conveyor	Specification	B1000*6m	7.5	1
Under the screen conveyor	Drive method	Electric drum drive	/	1
Transfer conveyor	Specification	B650*2m	3	1
Transfer conveyor	Drive method	Electric drum drive	/	1
Return conveyor	Specification	B500*8m	5.5	1
Return conveyor	Drive method	Electric drum drive	/	1
magnetic separator	Specification	RCYQ-10	2.2	1
magnetic separator	Drive method	Reducer	/	1
Single power system	Walking engine	Yuchai diesel engine	106	1
Dual power system	Generator set	Yuchai diesel engine	300	1
Electrical System	Electric control cabinet	Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components.	/	1
Matching		Belt Conveyor Folding Cylinder		1
Matching		Hydraulic pumps, valves, stations and tubing accessories		1
Dimensions(m)L×W×H		Working size16.55.34.3 Transport size16.53.53.8
Weight(t)		Single-power model:≈45t ,Dual-power models:≈47t
Power (kw)		Single-power model 209.32kw (not including walking engine power) Dual-power models209.32kw (not including generator set power)

LA250 CRAWLER MOBILE IMPACT CRUSHING PLANT
Model		Items and specifications	Power (kw)	Quantity(set)
Feeding equipment	Equipment	GZD1145	/	1
Feeding equipment	Vibration motor	Standard	7.5	2
Feeding equipment	Equipment	GZDT1525	/	1
Feeding equipment	Vibration motor	Standard	3.2	2
Crushing equipment	Equipment	LF250	/	1
	Triangle belt	SPC-7200	/	10
	Motor	4	200 Dual power	1
	Motor	Standard	250 Dual power	1
Return screen	Equipment	1542	/	1
Return screen	Vibration motor	Standard	3.06	2
Frame	Hydraulic crawler chassis	Standard	/	1
Frame	Boat frame		/	1
Main conveyor	Specification	B1200*10m	11	1
Main conveyor	Drive method	Electric drum drive	/	1
Side out conveyor	Specification	B650*4m	3	1
Side out conveyor	Drive method	Electric drum drive	/	1
Under the screen conveyor	Specification	B1200*6.2m	7.5	1
Under the screen conveyor	Drive method	Electric drum drive	/	1
Transfer conveyor	Specification	B650*2m	3	1
Transfer conveyor	Drive method	Electric drum drive	/	1
Return conveyor	Specification	B500*8.7m	5.5	1
Return conveyor	Drive method	Electric drum drive	/	1
magnetic separator	Specification	RCYQ-10	2.2	1
magnetic separator	Drive method	Reducer	/	1
Single power system	Walking engine	Yuchai diesel engine	80	1
Dual power system	Generator set	Yuchai diesel engine	400	1
Electrical System	Electric control cabinet	Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components.	/	1
Matching		Belt Conveyor Folding Cylinder		1
Matching		Hydraulic pumps, valves, stations and tubing accessories		1
Dimensions(m)L×W×H		Working size19.55.64.6 Transport size19.53.74.3
Weight(t)		Single-power model58t Dual-power models60t
Power (kw)		Single-power model 311kw (not including walking engine power) Dual-power models311kw (not including generator set power)

LA350 CRAWLER MOBILE IMPACT CRUSHING PLANT
Model		Items and specifications	Power (kw)	Quantity(set)
Feeding equipment	Equipment	GZDT1245	/	1
Feeding equipment	Vibration motor	Standard	9	2
Crushing equipment	Equipment	LF350	/	1
	Triangle belt	Standard	/
	Motor	Standard	315	1
Frame	Hydraulic crawler chassis	Standard	/	1
Frame	Boat frame		/	1
Main conveyor	Specification	B1200*10m	11	1
Main conveyor	Drive method	Electric drum drive	/	1
Side out conveyor	Specification	B650*4m	3	1
Side out conveyor	Drive method	Electric drum drive	/	1
Under the screen conveyor	Specification	B1200*6.2m	7.5	1
Under the screen conveyor	Drive method	Electric drum drive	/	1
Transfer conveyor	Specification	B650*2m	3	1
Transfer conveyor	Drive method	Electric drum drive	/	1
Return conveyor	Specification	B650*8.7m	5.5	1
Return conveyor	Drive method	Electric drum drive	/	1
magnetic separator	Specification	RCYQ-10	2.2	1
magnetic separator	Drive method	Reducer	/	1
Single power system	Walking engine	Yuchai diesel engine	145	1
Electrical System	Electric control cabinet	Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components.	/	1
Matching		Belt Conveyor Folding Cylinder		1
Matching		Hydraulic pumps, valves, stations and tubing accessories		1
Dimensions(m)L×W×H		Working size20.25.64.6 Transport size20.23.74.3
Weight(t)		Single-power model62t
Power (kw)		Single-power model 365kw (not including walking engine power)

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
