Type Mobile Jaw Crushing Plant
Crawler

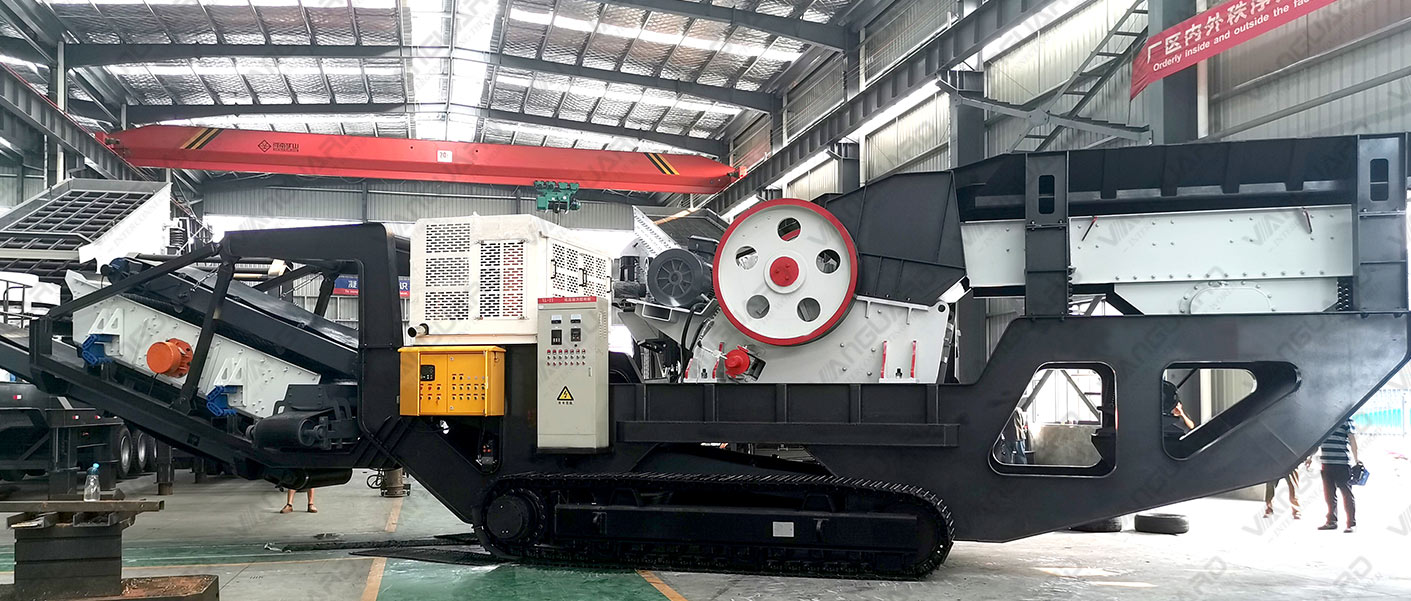

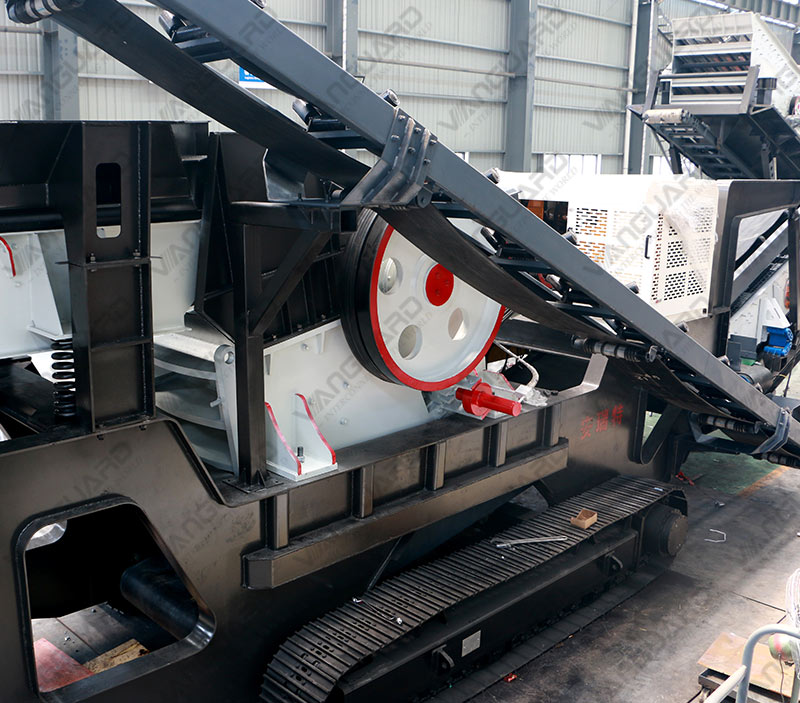

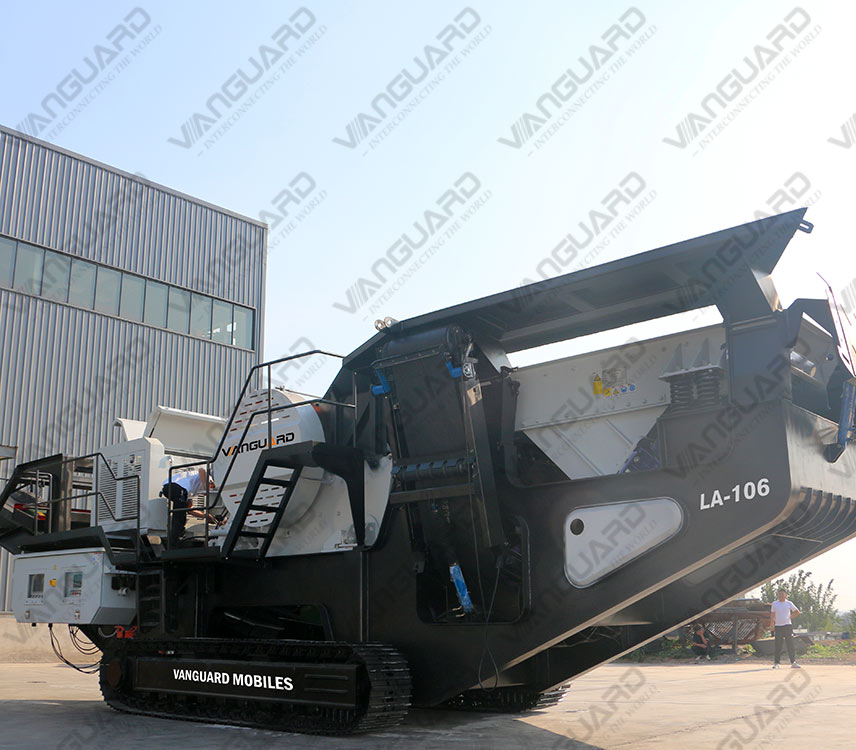

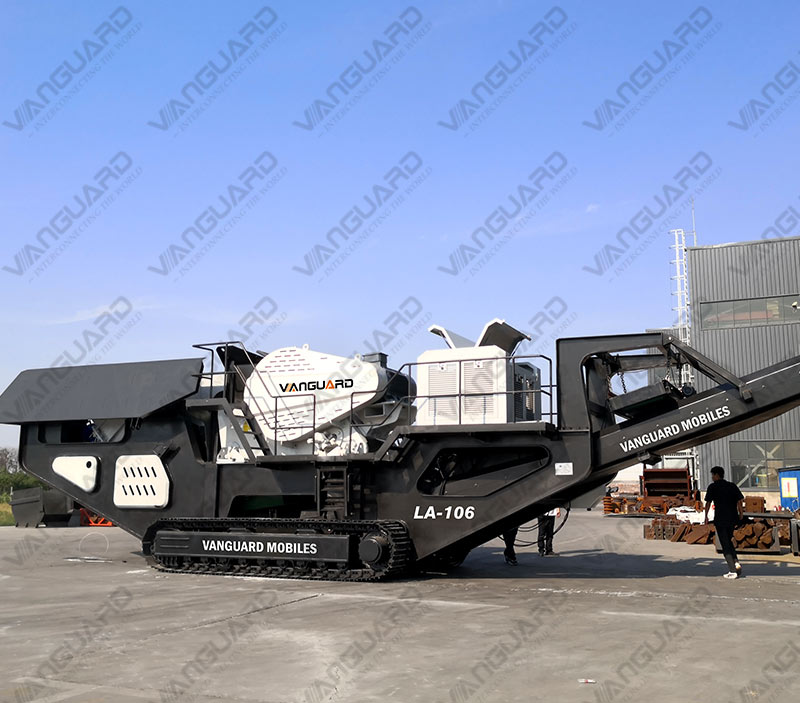

It adopts crawler-type vehicle chassis, fully hydraulic drive, equipped with large reduction ratio jaw crusher, feeder, belt conveyor, and other auxiliary equipment, forming an integrated group operation mode, a one-stop solution to the problem of materials coarse crushing. Vanguard Machinery crawler-type mobile crushing plant has high reliability and adaptability, whether narrow terrain and harsh environments, and are widely used in road and bridge construction, urban construction, metallurgy, energy, and other fields.

TECHNICAL DATA

Crawler type mobile jaw crushing plant		C96 crawler type mobile jaw crushing plant			C106 crawler type mobile jaw crushing plant			C116 crawler type mobile jaw crushing plant
Model		Items and specifications	power (kw)	Quantity(set)	Items and specifications	Power (kw)	Quantity(set)	Items and specifications	Power (kw)	Quantity(set)
Feeding equipment	Model	GZDT3895	/	1	GZDT1145	/	1	GZDT1145	/	1
Feeding equipment	Vibration motor	Standard	5.5	2	Standard	7.5	2	Standard	7.5	2
Crushing equipment	Equipment	C96	/	1	C106	/	1	C116	/	1
	Triangle belt	SPC-5600	/	8	SPC-5560	/	11	SPC-6300	/	8
	Motor	6	75	1	Y315L1-6	110	1	Y315L1-6	132	1
Frame	Hydraulic crawler chassis	Standard	/	1	Standard	/	1	Standard	/	1
Frame	Boat frame	plate thickness=12-20mm	/	1	plate thickness=12-20mm	/	1	plate thickness=12-20mm	/	1
Main conveyor	Specification	B800*12m	7.5	1	B1000*12m	11	1	B1200*12m	15	1
Main conveyor	Drive method	Electric drum drive	/	1	Electric drum drive	/	1	Electric drum drive	/	1
Side out conveyor	Specification	B650*4m	3	1	B650*4m	3	1	B650*4m	3	1
Side out conveyor	Drive method	Electric drum drive	/	1	Electric drum drive	/	1	Electric drum drive	/	1
Magnetic separator	Specification	RCYQ-8	1.5	1	RCYQ-10	2.2	1	RCYQ-12	3	1
Magnetic separator	Drive method	Reducer	/	1	Reducer	/	1	Reducer	/	1
Single power system	Walking engine	Yuchai diesel engine	80	1	Yuchai diesel engine	80	1	Yuchai diesel engine	80	1
Dual power system	Generator set	Yuchai diesel engine	160	1	Yuchai diesel engine	200	1	Yuchai diesel engine	250	1
Electrical System	Electric control cabinet	Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components.	/	1	Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components.	/	1	Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components.	/	1
Matching		Belt Conveyor Folding Cylinder		1	Belt Conveyor Folding Cylinder		1	Belt Conveyor Folding Cylinder		1
Matching		Hydraulic pumps, valves, stations and tubing accessories		1	Hydraulic pumps, valves, stations and tubing accessories		1	Hydraulic pumps, valves, stations and tubing accessories		1
Dimensions(m)L×W×H		Working size1453.8	Transport size143.23.5		Working size16.55.64.1	Transport size16.53.33.8		Working size16.75.64.2	Transport size16.73.33.9
Weight (t)		Single-power model:≈38t,Dual-power models:≈40t			Single-power model:≈45t,Dual-power models:≈47t			Single-power model:≈65t,Dual-power models:≈67t
Power (kw)		Single-power model: 98kw(not including walking engine power),Dual-power models: 98kw(not including generator set power)			Single-power model: 141.2kw(not including walking engine power),Dual-power models: 141.2kw(not including generator set power)			Single-power model: 170.2kw(not including walking engine power),Dual-power models: 170.2kw(not including generator set power)

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
