What Crushers are Available for Diabase Crushing?

Diabase, also known as dolerite, is a fine-grained, hard, and dense igneous rock, so it is an ideal material for construction, road building, and concrete production. When crushing diabase, several types of crushers can be used depending on the size of the material, the desired output size, and the crushing process. Here are some common crushers suitable for diabase crushing:

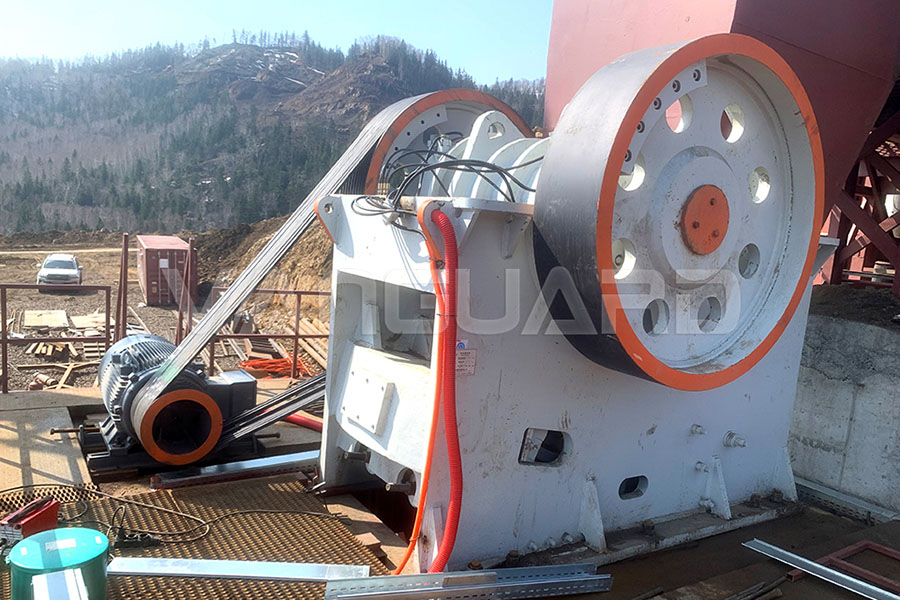

1. Jaw Crusher

Function: Used for primary crushing, jaw crushers are suitable for breaking large diabase rocks into smaller, more manageable pieces.

Working Principle: A fixed jaw and a moving jaw work together to crush the rock through compression. As the material is fed into the opening, it gets crushed between the two jaws.

Applications: It is commonly used for the initial stage of crushing in diabase processing, producing rough fragments of around 10–50 cm.

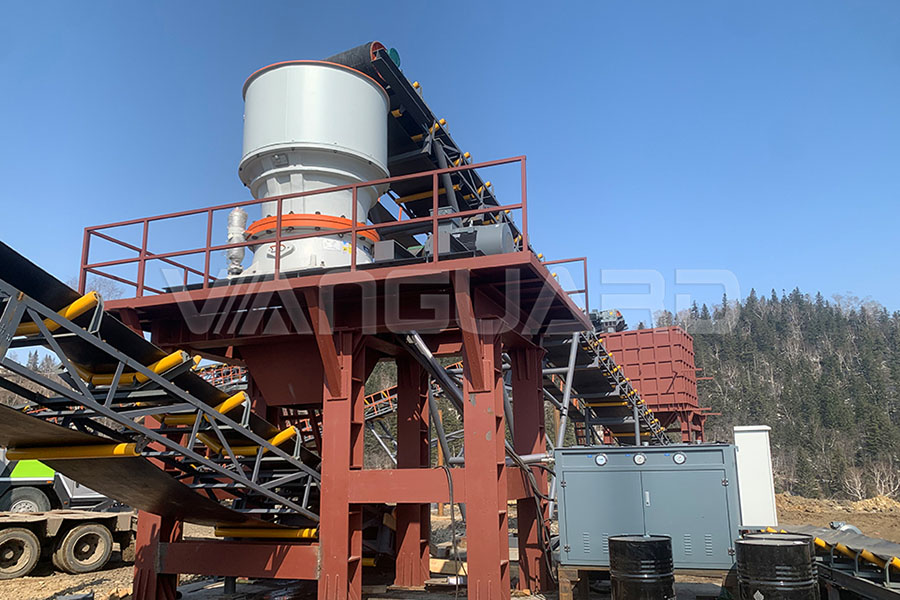

2. Cone Crusher

Function: Ideal for secondary, tertiary, or even quaternary crushing, cone crushers are widely used to produce high-quality aggregates from diabase.

Working Principle: A rotating mantle inside the cone crusher is pushed against a stationary concave, which crushes the material through compression and shear forces.

Applications: Often used for finer crushing after primary jaw crushers, especially when producing fine aggregates.

Crusher Selection Criteria

The choice of crusher depends on several factors:

Feed Size: Jaw crushers are better for large feed sizes, while cone crushers and impact crushers are more suitable for smaller-sized feed.

Desired Output Size: For fine material or sand production, a VSI crusher might be best. For coarser aggregates, a jaw or cone crusher could be more appropriate.

Hardness of Diabase: Diabase is quite hard, so crushers that can handle high-compression loads (such as jaw or cone crushers) are preferred.

Capacity Requirements: The scale of the operation will influence whether you choose a single machine or a combination of machines for different stages.

By understanding the specific needs of your diabase crushing process, you can select the most suitable crushers to achieve the desired output while maximizing efficiency.
