Series Vibrating Screen
YA

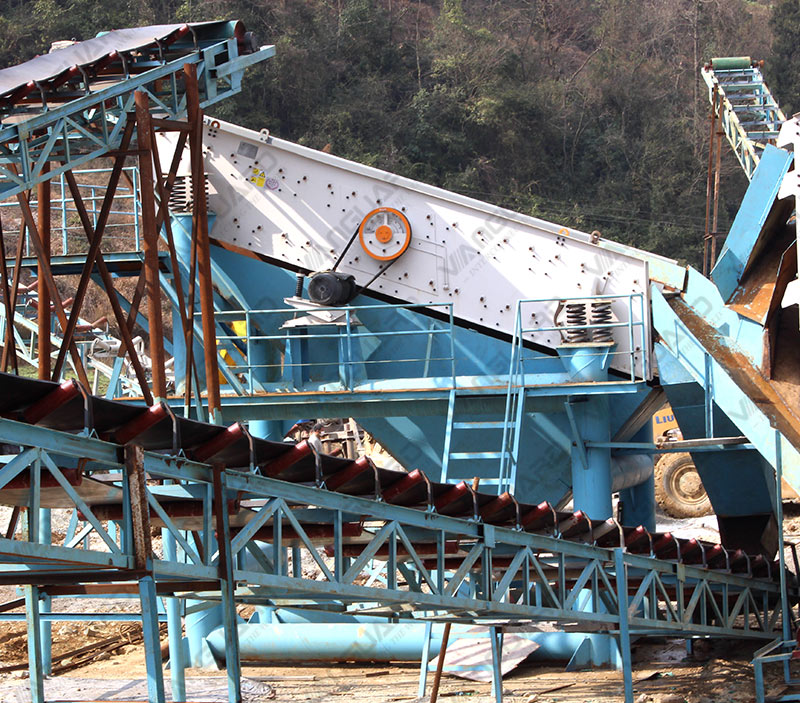

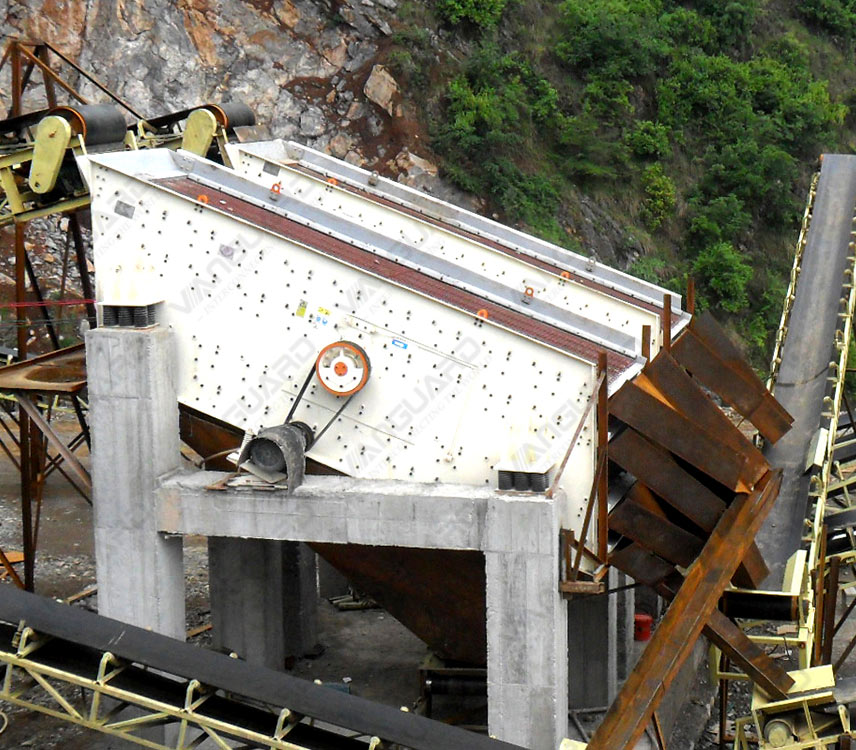

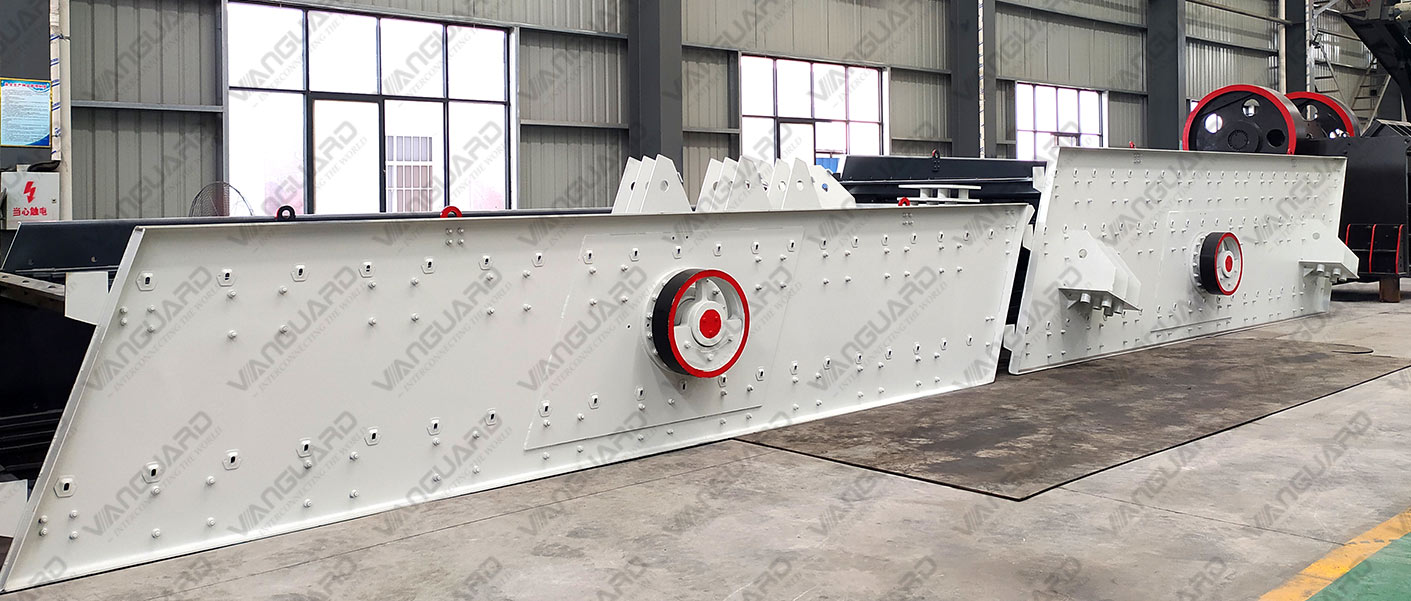

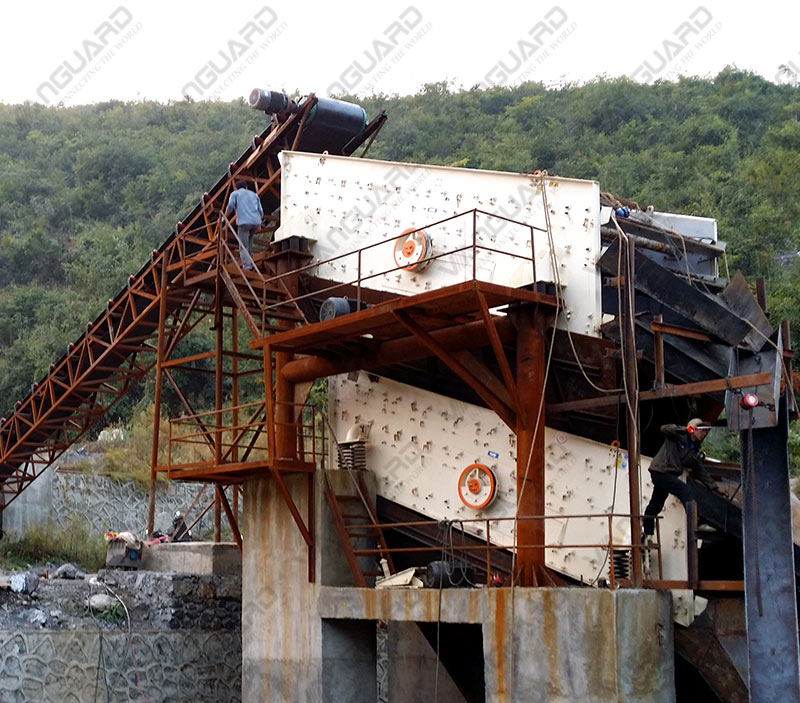

YA Series Vibrating Screen is of multiple layers and vibrating circularly. It is of long screen line correct to screen in all kinds of specification products. Our vibrating screen adopts the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing.

WATCH VIDEO

TECHNICAL DATA

Model	Layer of Screen	Size of Sieve Pore (mm)	Max. Feeding Size (mm)	Capacity (m³/h)	Double Amplitude (mm)	Model of Motor	Motor Power (kW)	Screen Specaification (mm)



2YA1548	2	3~100	300	22~160	8	Y160L-4	15	1500×4800
3YA1548	3	3~100	300	22~160	8	Y160L-4	15	1500×4800
4YA1548	4	3~100	300	22~160	8	Y160L-4	15	1500×4800
2YA1848	2	3~100	300	32~276	8	Y180M-4	18.5	1800×4800
3YA1848	3	3~100	300	32~276	8	Y180M-4	18.5	1800×4800
4YA1848	4	3~100	300	32~276	8	Y180M-4	18.5	1800×4800
2YA1860	2	3~100	300	65~586	8	Y180M-4	22	1800×6000
3YA1860	3	3~100	300	65~586	8	Y180M-4	22	1800×6000
4YA1860	4	3~100	300	65~586	8	Y180M-4	22	1800×6000
2YA2160	2	3~100	300	81~720	8	Y200L-4	30	2100×6000
3YA2160	3	3~100	300	81~720	8	Y200L-4	30	2100×6000
4YA2160	4	3~100	300	81~720	8	Y200L-4	37	2100×6000
2YA2460	2	3~150	300	90~810	8	Y225S-4	37	2400×6000
3YA2460	3	3~150	300	90~810	8	Y225S-4	37	2400×6000
4YA2460	4	3~150	300	90~810	8	Y225S-4	37	2400×6000
2YK3072	2	3~200	300	180~1300	8	Y200L-4	30×2	3000×7200
3YK3072	3	3~200	300	180~1300	8	Y200L-4	30×2	3000×7200

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
