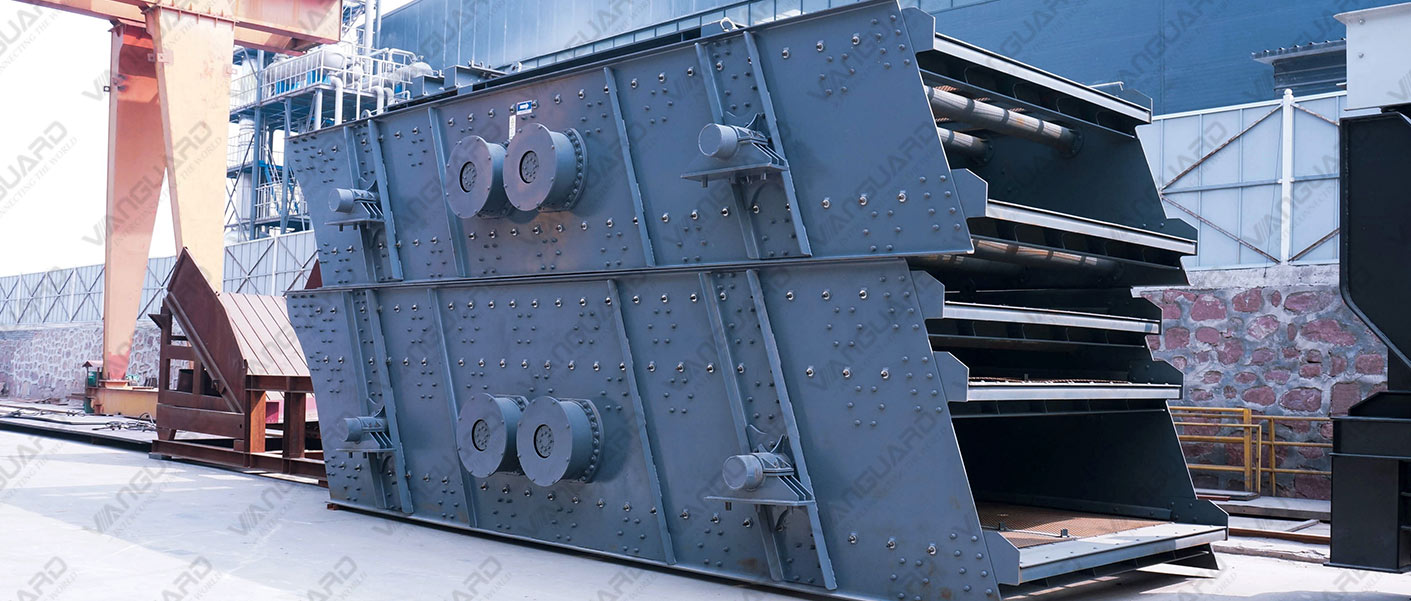

Series Self-aligning Damping Vibrating Screen
ZY

ZY series self-aligning damping vibrating screen is a brand-new vibrating screening equipment developed by Vanguard's scientific research personnel to track the working conditions of YA and YK series vibrating screen on the spot collect widely the suggestions of installation and maintenance technicians.

WATCH VIDEO

TECHNICAL DATA

Model	Layer of Screen	Size of Sieve Pore(mm)	Max. Feed Size(mm)	Capicity（t/h）	Double Amplitude (mm)	Motor Power (kw)	Screen Specification (mm)
2ZY1237	2	3-50	200	10-100	7-10	11	1200×3700
3ZY1237	3	3-50	200	10-100	7-10	11	1200×3700
2ZY1548	2	3-80	300	22-165	7-10	15	1500×4800
3ZY1548	3	3-80	300	22-165	7-10	15	1500×4800
2ZY1848	2	3-80	300	35-275	7-10	18.5	1800×4800
3ZY1848	3	3-80	300	35-275	7-10	18.5	1800×4800
2ZY1860	2	3-80	300	65-590	7-10	22	1800×6000
3ZY1860	3	3-80	300	65-590	7-10	22	1800×6000
4ZY1860	4	3-80	300	65-590	7-10	30	1800×6000
2ZY2070	2	3-100	300	95-700	7-10	30	2000×7000
3ZY2070	3	3-100	300	95-700	7-10	30	2000×7000
4ZY2070	4	3-100	300	95-700	7-10	37	2000×7000
2ZY2160	2	3-100	300	85-750	7-10	30	2100×6000
3ZY2160	3	3-100	300	85-750	7-10	30	2100×6000
4ZY2160	4	3-100	300	85-750	7-10	37	2100×6000
2ZY2460	2	3-120	300	90-850	6-9	37	2400×6000
3ZY2460	3	3-120	300	90-850	6-9	37	2400×6000
4ZY2460	4	3-120	300	90-850	6-9	45	2400×6000
2ZY2860	2	3-120	300	110-1000	6-9	45	2800×6000
3ZY2860	3	3-120	300	110-1000	6-9	45	2800×6000
2ZY3073	2	3-120	300	150-1300	6-9	30×2	3000×7300
3ZY3073	3	3-120	300	150-1300	6-9	30×2	3000×7300
2ZY3673	2	3-120	300	180-1600	6-9	30×2	3600×7300
3ZY3673	3	3-120	300	180-1600	6-9	37×2	3600×7300

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
