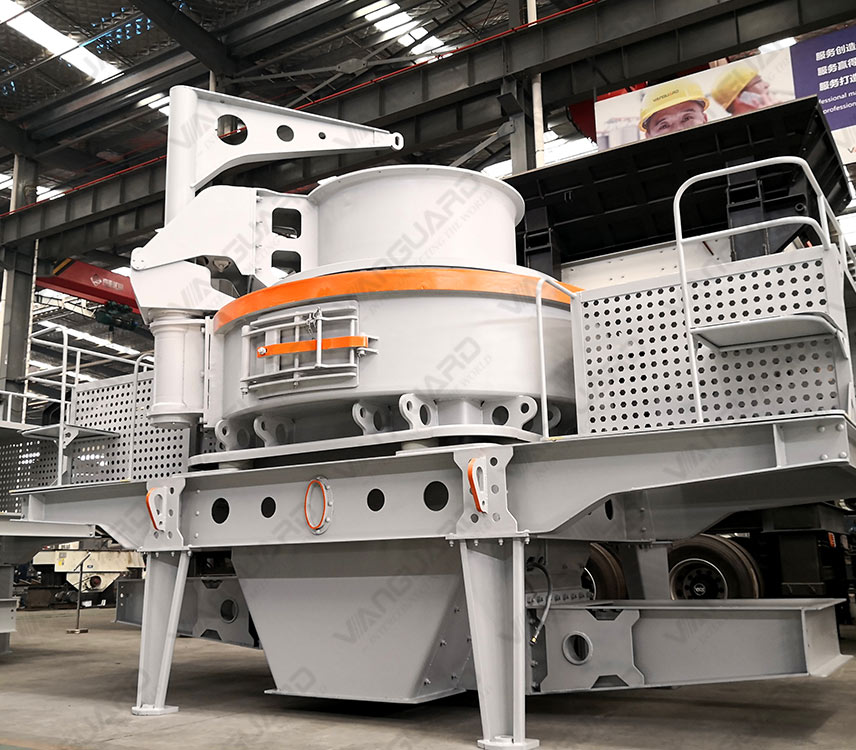

Series Sand Making Machine Crusher
5X

5X series new sand making machine (centrifugal impact crusher) is suitable for medium and fine crushing all kinds of ores and rocks with different hardness such as bauxite quartz sand oxide perlite basalt and other high hardness materials.

WATCH VIDEO

TECHNICAL DATA

Model			5X7615	5X8522	5X9532	5X1145
Capacity (t/h)	Central Feeding with Circular Cascade Feeding		150~280	240～380	350～540	500～640
	Fully Central Feeding
			70~140	120~200	180~280	250~360
Max. Feeding Size (mm)		Soft Material	<35	<40	<45	<50

		Hard Material	<30	<35	<40	<45
Rotation Speed (r/min)			1700~1900	1500~1700	1300~1510	1100~1310
Double Motor Power (kW)			150	220	320	440
Overall Dimension LxWxH (mm)			4100×2300×2300	4140×2500×2700	4560×2600×2900	5100×2790×3320
Power Supply			380V，50Hz
Double Oil Oumps Motor’s Power (kW)			2x0.31
Thin Oil Lubrication Station	Safty Assurance		Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure;
			Air cooling system /water cooling system available; preheating-start engine adopted.
	Power of Oil Tank Heater(kW)		2

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
