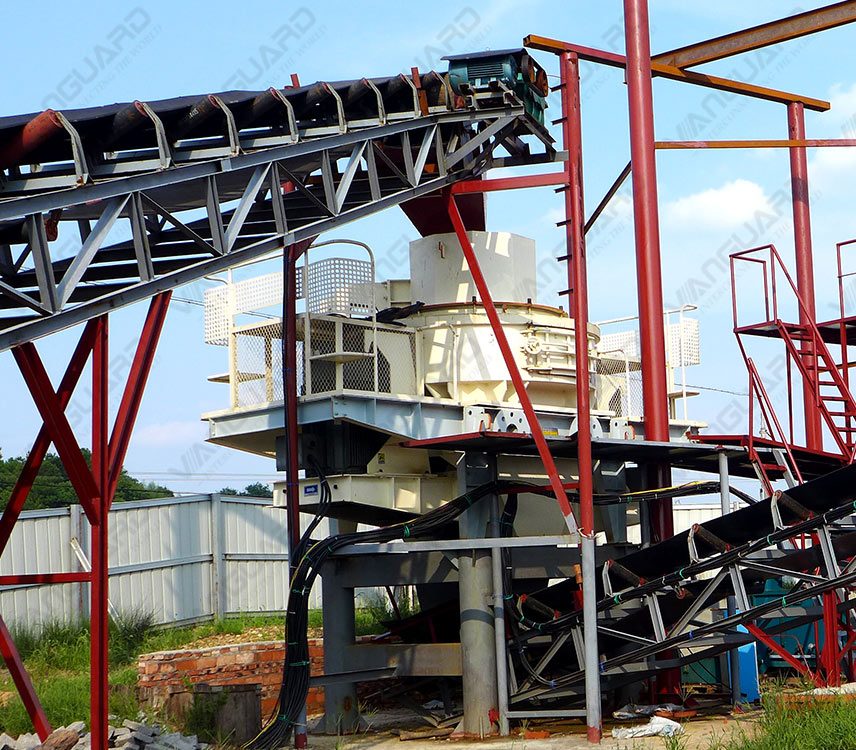

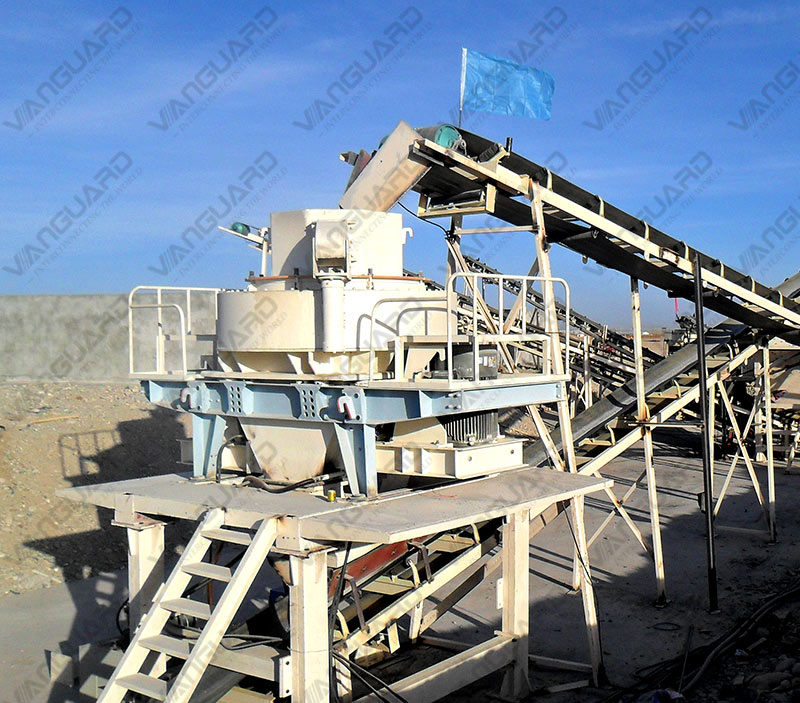

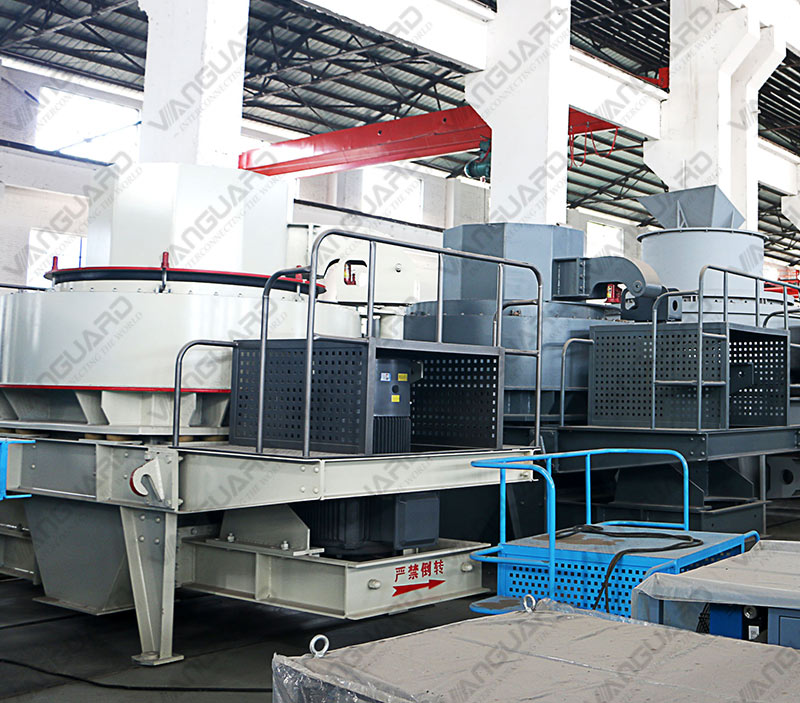

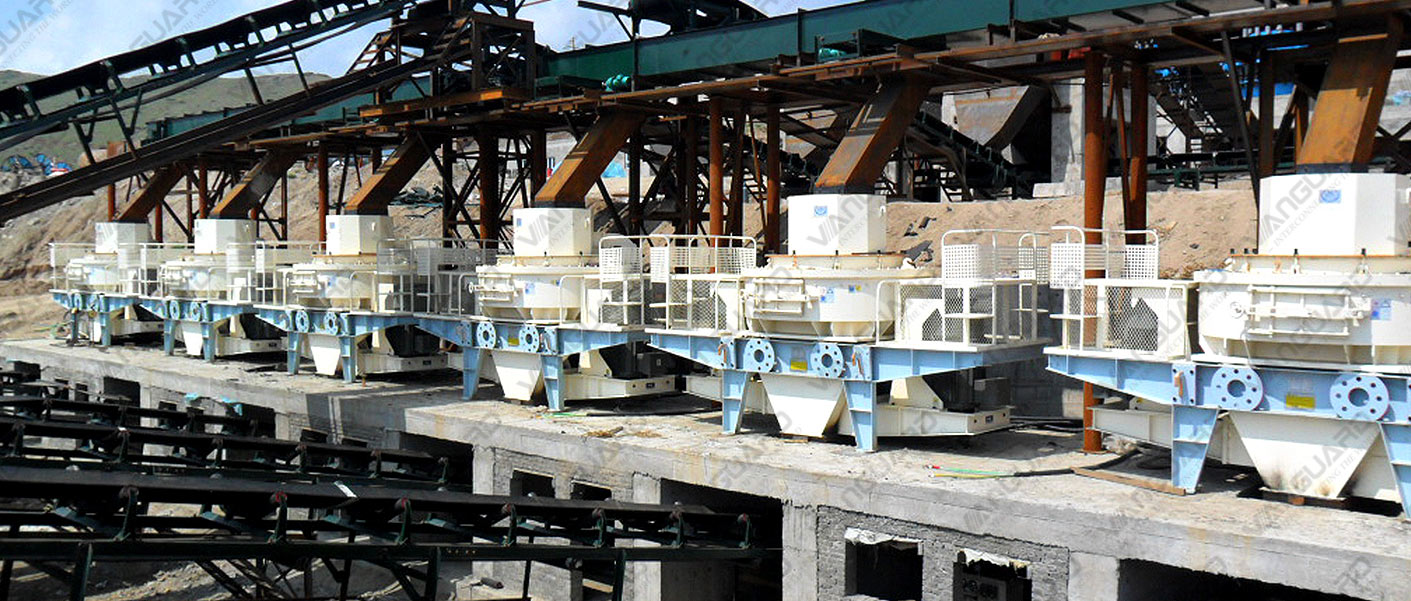

Vertical Shaft Impact Crusher
VSI

VSI Series Vertical Shaft Impact Crusher is a new generation of crushing and sand making equipment developed by our company according to the actual working conditions of VSI Series Vertical Shaft Impact Crusher combined with advanced technology at home and abroad and according to the actual situation of domestic building materials.

WATCH VIDEO

TECHNICAL DATA

Model		VSI7611	VSI8518	VSI9526	VSI1140
Capacity(t/h)	Cascade and Central Feeding	120~180	200~260	300~380	450~520
Capacity(t/h)	Fully Central Feeding	60~90	100~130	150~190	220~260
Max. Feeding Size(mm)	Soft Material	<35	<40	<45	<50
Max. Feeding Size(mm)	Hard Material	<30	<35	<40	<45
Rotation Speed(r/min)		1700~1890	1520~1690	1360~1510	1180~1310
Double Motor Power(kW)		110	180	264	400
Overall Dimension L×W×H(mm)		3700×2150×2100	4140×2280×2425	4560×2447×2778	5000×2700×3300
Weight (t)		11.8	14.5	17.8	25.6
Thin Oil Lubrication Station	Double Oil Pumps Motor's Power (kW)	2×0.25
	Safty Assurance	Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure; air cooling system /water cooling system available; preheating-start engine adopted.
	Overall Dimension L×W×H(mm)	820×520×1270
	Power of Oil Tank Heater(kW)	2

*Details may vary based on application
**Weight inclusive of motor & accessories.
Note:All the above technical details may vary at any time during engineering process & design development.
